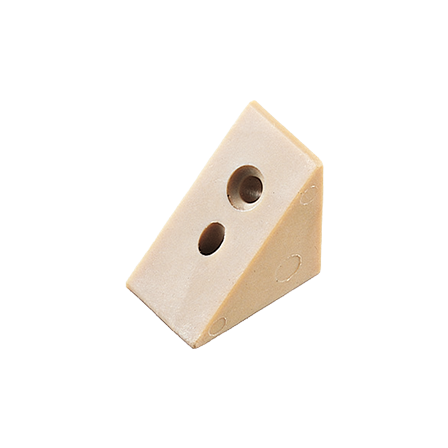

PPS spacer for 45° mounting on the substrate / VCP
PPS spacer for 45° mounting on the substrate / VCP
This product is a PPS (polyphenylene sulfide) spacer for mounting circuit boards at a 45° angle, featuring excellent electrical properties and chemical resistance. It is designed to allow circuit boards to be arranged at a 45° angle relative to the housing, making it suitable for high-density mounting in limited spaces and for three-dimensional board layouts that consider visibility and wiring efficiency. Additionally, it possesses the flame retardancy characteristic of PPS (equivalent to UL94 V-0) and high chemical resistance, making it suitable for use in environments where heat resistance, flame retardancy, and chemical resistance are required. Being made of resin, it does not rust like metal, making it usable as a fastening component in environments where metal corrosion is to be avoided. With excellent electrical insulation properties, it helps prevent electrical short circuits and ensures electrical separation in circuit board mounting. It is a fastening component suitable for electronic devices that require circuit board mounting at special angles like 45° and for circuit designs that require space-saving solutions.
basic information
■Specifications - Material: PPS (Polyphenylene Sulfide) with 40% glass fiber - Color: Brown - Heat distortion temperature: 1.82MPa…260℃ - UL standard: UL94V-0 (material) ■Size Variations - Screw diameter: M2.6/M3 ■EU-RoHS - Compliant with EU-RoHS2
Price information
For more details, please check our company website or catalog, or feel free to contact us.
Delivery Time
Model number/Brand name
VCP
Applications/Examples of results
We offer a variety of products that can be used for various applications such as printed circuit board mounting, electronic component mounting, semiconductor mounting, relay terminal mounting, distribution board components, robot components, industrial machinery, machine tool components, water treatment machinery components, FA equipment, mobile communications, mobile mobility, and base station-related components.
