Nylon spacer hexagonal with male threads and washer / WSN
Nylon spacer hexagonal with male threads and washer / WSN

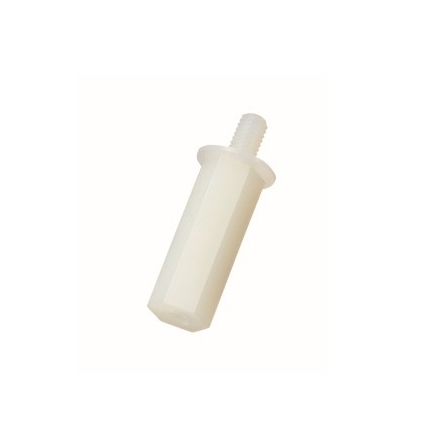

This is a hex spacer with male and female threads, featuring a washer, made from lightweight and highly insulating nylon 66. By integrating the washer with the male thread, it ensures a sufficient contact area with the fastening target, distributing the tightening load to support stable assembly. ■ Main Features - Stability with Washer: Ensures contact area and distributes tightening load, helping to reduce localized stress, scratches, and deformation on the target object. - Contribution to Weight Reduction: Lighter compared to metal spacers, supporting the overall weight reduction of equipment and devices. - Excellent Insulation: Made from nylon 66, which has excellent electrical insulation properties, aiding in electrical insulation and separation during circuit board assembly and preventing shorts. - Corrosion Resistance (Non-Metal): Since it does not rust like metal, it is suitable for use in environments where metal corrosion is to be avoided. ■ Applications - Electrical insulation and separation in circuit board assembly - Fixing in areas where load distribution through a washer is required - Fixing in areas where scratches or deformation on the target object need to be minimized - Design requiring weight reduction of equipment and devices - Assembly in environments where metal corrosion is to be avoided
basic information
■Specifications - Material: Nylon 66 - Color: Translucent - Heat distortion temperature: 75°C at 1.82MPa - UL standard: UL94V-2 (material) ■Washer Section - Material: Nylon 66 - Color: Translucent - Heat distortion temperature: 75°C at 1.82MPa - UL standard: UL94-HB (material) ■Size Variation - Screw diameter: M2/M3/M4 ■EU-RoHS - Compliant with EU-RoHS2
Price information
For more details, please check our website or catalog, or feel free to contact us.
Delivery Time
Model number/Brand name
WSN
Applications/Examples of results
We offer a variety of products that can be used for various applications such as printed circuit board mounting, electronic component mounting, semiconductor mounting, relay terminal mounting, distribution board components, robot components, industrial machinery, machine tool components, water treatment machinery components, FA equipment, mobile communications, mobile mobility, and base station-related components.
