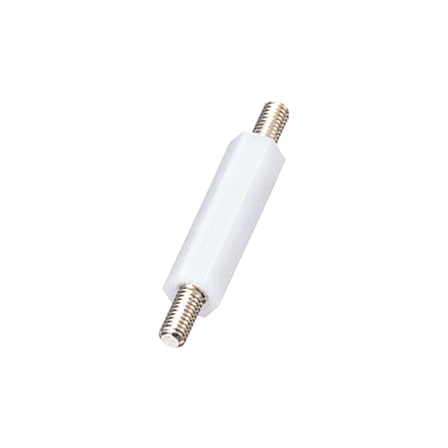

Juralon Spacer Hexagonal, Both Ends Threaded, Press-Fit, Conductive Type / ES-E
Juralon Spacer Hexagonal, Both Ends Threaded, Press-Fit, Conductive Type / ES-E
This product is a spacer made of Delrin (POM) with mechanical strength and high dimensional stability, featuring metal threaded inserts. It is a "conductive type" where the metal threads are connected within the body, allowing it to accommodate both areas that require electrical connections. The Delrin material has very low water absorption, making it less susceptible to humidity and maintaining high precision dimensions over a long period. Additionally, the metal threads provide high reliability and strong retention even in areas where screws need to be repeatedly attached and detached or where high fastening torque is required. Combining the lightweight properties of resin with the strong fastening capability of metal screws, it serves as an ideal component choice for designs that require both electrical conductivity and stable physical fixation simultaneously.
basic information
■Specifications - Material: Delrin (POM) - Color: Milky white - Heat distortion temperature: 1.82MPa…110℃ - UL standard: UL94-HB (material) ■Threaded section - Material: Free-cutting brass (C3604BD) with cadmium content less than 75ppm - Treatment: Nickel plating (Ni) ■Size variations - Screw diameter: M3/M4 ■EU-RoHS - Compliant with EU-RoHS2
Price information
For more details, please check our company website or catalog, or feel free to contact us.
Delivery Time
Model number/Brand name
ES-E
Applications/Examples of results
We offer a variety of products that can be used for various applications such as printed circuit board mounting, electronic component mounting, semiconductor mounting, relay terminal mounting, distribution board components, robot components, industrial machinery, machine tool components, water treatment machinery components, FA equipment, mobile communications, mobile mobility, and base station-related components.
