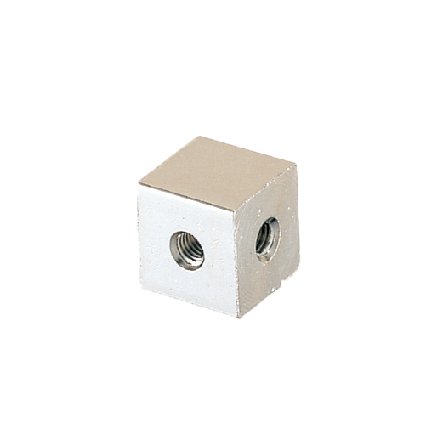

Brass spacer for vertical board mounting / VAB-E
Brass spacer for vertical board mounting (nickel-plated) / VAB-E
The brass vertical circuit board mounting spacers are cube-shaped parts designed to connect and secure circuit boards vertically (at a 90-degree angle). They play a crucial role in maximizing the limited internal volume of enclosures and in designs that require three-dimensional arrangement of circuit boards. The cube shape, which makes contact over a surface, has a larger contact area than cylindrical spacers, allowing for stronger and more precise retention of circuit boards even in environments prone to vibrations and shocks. Made from brass, which has excellent mechanical strength, these spacers provide stable holding power over long periods due to their high rigidity. The surface is treated with nickel plating, offering excellent corrosion resistance that prevents oxidation and discoloration, thus supporting reliable long-term mounting. These spacers are an ideal solution when assembling circuit boards in L-shape or box configurations, balancing mechanical reliability with design efficiency.
basic information
■Specifications - Material: Free-cutting brass (C3604BD) with cadmium content less than 75ppm - Treatment: Nickel plating (Ni) - RoHS2 compliant ■Standards - Screw diameter: M2.6/M3/M4
Price information
For more details, please check our website or catalog, or feel free to contact us.
Delivery Time
Model number/Brand name
VAB-E
Applications/Examples of results
We offer a variety of products that can be used for various applications, including printed circuit board mounting, electronic component mounting, semiconductor mounting, relay terminal mounting, distribution board components, robot components, industrial machinery, machine tool components, water treatment machinery components, FA equipment, mobile communication, mobile mobility, and base station-related components.
catalog（1）
Download All Catalogs
Distributors
We, Hirosugi Instruments, are a comprehensive manufacturer of mechanical and electronics parts, dealing with spacers, terminals, washers, bushes, screws, and more. Our wide range of products boasts a diverse lineup that matches various applications, and we have received high praise from customers in various industries for providing multifunctional, high-quality products with short delivery times and low costs. From product development to design, procurement, and technical support, we provide one-stop support through our product offerings. ■ Company Features ■ 1: Offering a diverse selection of over 118,000 standard parts. 2: One of the largest spacer lineups in Japan. 3: Free shipping for orders over 3,000 yen (excluding tax). 4: Orders can be placed starting from a minimum lot of 50 pieces. 5: High-quality standard products at ISO levels. 6: Fast delivery from our own stock for all products. 7: Affordable pricing with cost control. 8: Support for issuing various certificates. 9: Actively supporting the production of custom products. 10: Providing consistent and specialized services.
