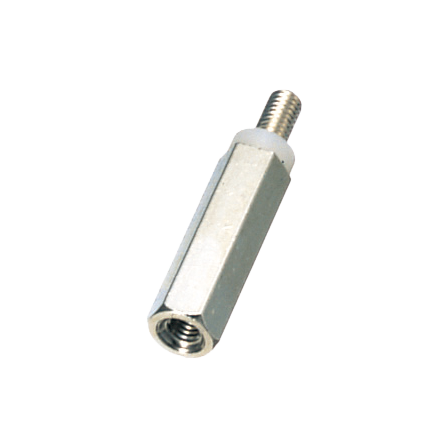

Brass spacer, male thread, insulated type on the male thread side / BDB-RE
Brass spacer hexagonal, male thread, insulated type on the male thread side (nickel-plated) / BDB-RE
This is a brass hex spacer that has been treated for insulation on the screw side, achieving both fastening and insulation in one unit. It prevents unexpected electrical conduction and shorts that can occur during the fixation of printed circuit boards and precision units, thereby enhancing the reliability of electronic devices. ■ Main Features - Short Circuit Prevention (Insulated Structure on Screw Side): The insulation treatment on the screw side eliminates the risk of unexpected electrical conduction or short circuits through the metal spacer. - Excellent Workability (Hexagonal Shape): The hexagonal shape allows for secure tightening with tools, ensuring reliable fixation. - High Precision Fit (Brass Material): Made from brass, which has excellent machinability, it offers stable fitting performance with minimal variation in screw precision. - Corrosion Resistance and Appearance (Nickel Plating): The nickel plating on the surface enhances corrosion resistance and rust prevention, maintaining a beautiful metallic luster over time. ■ Applications - Prevention of electrical interference and shorts during the fixation of printed circuit boards and precision units. - Situations in high-density electronic device design where protection of circuit boards and safety assurance are required. - Circuit designs that demand rust resistance and reliable insulation performance due to nickel plating.
basic information
■Specifications - Material: Free-cutting brass (C3604BD) with cadmium content below 75ppm - Treatment: Nickel plating (Ni) - RoHS2 compliant ■Standards - Screw diameter: M3
Price information
For more details, please check our website or catalog, or feel free to contact us.
Delivery Time
Model number/Brand name
BDB-RE
Applications/Examples of results
We offer a variety of products that can be used for various applications such as printed circuit board mounting, electronic component mounting, semiconductor mounting, relay terminal mounting, distribution board components, robot parts, industrial machinery, machine tool parts, water treatment machinery parts, FA equipment, mobile communications, mobile mobility, and base station-related components.
