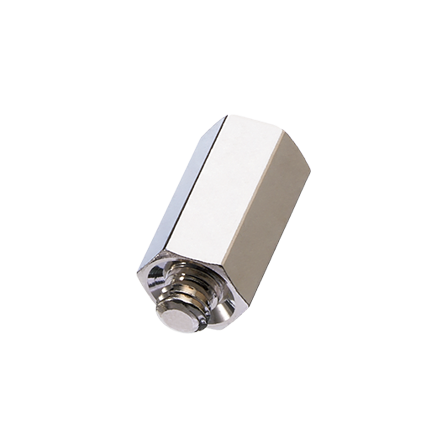

Brass spacer hexagonal, male thread for thin plate mounting / PSB-E
Brass Spacer Hexagonal Male Thread for Thin Plate Mounting (Nickel Plated) / PSB-E
This is a brass hex spacer designed with an extremely short screw length, specialized for mounting on thin plates and circuit boards. To minimize interference with the backside, it can be utilized in high-density mounting designs that effectively use the internal space of the enclosure. ■ Main Features - Ultra-short screw design (for thin plate mounting): By shortening the screw to the limit, it prevents interference with the backside even when mounted on thin sheet metal or circuit boards. - High holding power and workability (hexagonal shape): The hexagonal shape allows for secure tightening with tools, providing stable holding power even when fixed to thin plates. - High precision fitting (made of brass): Utilizing brass, which has excellent machinability, results in minimal variation in screw precision, enabling smooth fastening. - Corrosion resistance and appearance (nickel plating): The nickel plating on the surface enhances corrosion resistance and rust prevention, maintaining a beautiful metallic luster over a long period. ■ Applications - Direct mounting and fixing to very thin sheet metal or circuit boards - High-density mounting designs that want to effectively utilize limited internal space of enclosures - Assembly scenarios for precision instruments where protrusion or interference with the backside should be avoided.
basic information
■Specifications - Material: Free-cutting brass (C3604BD) with cadmium content less than 75ppm - Treatment: Nickel plating (Ni) - Compliant with EU-RoHS2 ■Standards - Screw diameter: M2.5/M2.6/M3
Price information
For more details, please check our website or catalog, or feel free to contact us.
Delivery Time
Model number/Brand name
PSB-E
Applications/Examples of results
We offer a variety of products that can be used for various applications such as printed circuit board mounting, electronic component mounting, semiconductor mounting, relay terminal mounting, distribution board components, robot parts, industrial machinery, machine tool parts, water treatment machinery parts, FA equipment, mobile communications, mobile mobility, and base station-related components.
