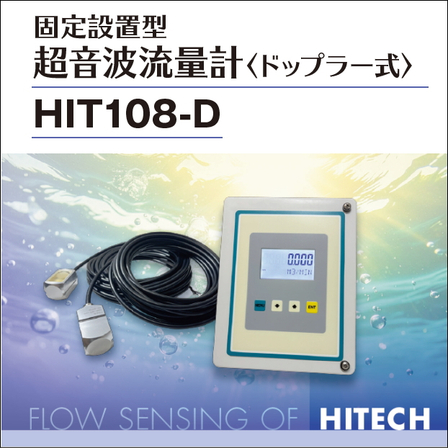

Ultrasonic Flow Meter | Ultrasonic Flow Meter (Doppler Type) HIT108-D
High-spec ultrasonic flow meter that combines high precision, advanced functionality, and high reliability.
Ultrasonic flow meters only require the installation of detectors on the outside of the piping, eliminating the need for pipe modifications. This significantly reduces construction costs and greatly shortens the time required for installation. Additionally, they allow for non-contact measurement and can measure corrosive fluids. Fluids such as food are also hygienic. Main Features: - Suitable for measuring fluids with foreign substances or bubbles that cannot be measured by the time-of-flight method. - Fluid measurement using the Doppler effect: When ultrasonic waves are transmitted to impurities or bubbles mixed in the fluid within the pipe, the frequency changes due to the movement speed of the particles, creating a frequency difference. The flow rate is calculated from this frequency difference. - Cannot measure clean fluids without impurities or bubbles. ■ Usage Precautions: - The pipe must be completely filled with water. - Measurement cannot be performed if there are bubbles or floating substances like debris in the fluid. Please consult us if you plan to use it with lined pipes or similar applications. - Install the indicator (converter) in a location not exposed to direct sunlight. - Consult us if there are power lines or railways near the installation site. - If installed in an area prone to lightning, please use lightning protection devices.
basic information
Model: HIT108-D Applicable pipe diameter: φ40 to 3000mm Measurement flow velocity range: 0.05 to 12m/s Accuracy: ±0.8% F.S. Output: Analog output: 4 to 20mADC (load resistance below 600Ω) Open collector pulse: cumulative output Contact output: alarm output Temperature range: Indicator: -20 to 60℃, Detector: -35 to 85℃ Indicator (converter): Protection structure: IP66 Detector: Cable length: standard 9m (extension up to 100m possible), Protection structure: IP67 Display section: LCD display for instantaneous flow/flow rate, instantaneous flow/cumulative flow Parameter input: 4-keypad input Protection structure: Body: IP54, Detector: IP68 Power supply: AC85 to 265V / DC24V 500mA Measurement accuracy: ±1.50% F.S.
Price information
Please contact us.
Delivery Time
Model number/Brand name
HIT108-D
Applications/Examples of results
It is suitable for measuring foreign substances or fluid with air bubbles that cannot be measured by the propagation time difference method. Applicable pipe diameter: φ40 to 3000mm
