An industrial protocol gateway that leverages and deepens existing systems.
Building on existing systems, taking the next step. Achieving a stable industrial communication infrastructure through the transition to the MGate G2 series.
Moxa's MGate MB3170/3270/3470-G2 series enables data integration with SCADA and upper systems while leveraging existing serial devices and industrial network assets, serving as a bridge between different communication methods in a wide range of applications. Particularly when advancing equipment updates or Ethernetizing networks, it plays a crucial role in ensuring connectivity and stable operation between old and new systems. While inheriting the usability of conventional models, it achieves high-speed processing and enhanced security through Agent Mode. It allows for smooth SCADA integration without the need for complex settings, integrates serial devices into Ethernet networks, and supports the efficiency of data collection and monitoring. Furthermore, the G2 series improves responsiveness through enhanced processing performance and provides a more secure operating environment with strengthened security features. It enables gradual migration by utilizing existing equipment as is, supporting the establishment of a stable communication infrastructure for future digitalization and IIoT deployment. It is also gaining attention as an option for improved maintainability and long-term operation.
basic information

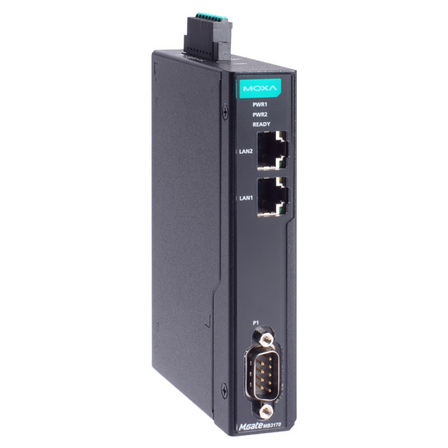

【MGate MB3170-G2】 ●1-Port Serial - 1-Port Ethernet Ideal for connecting a small number of serial devices or for small-scale facilities. 【MGate MB3270-G2】 ●2-Port Serial - 1-Port Ethernet Supports connection of multiple devices, streamlining network integration. 【MGate MB3470-G2】 ●4-Port Serial - 1-Port Ethernet Supports multi-point connections, ideal for integrating medium to large-scale facilities. ★Common Specifications for All Models★ ●Modbus RTU/ASCII ⇔ Modbus TCP Conversion ・Integrates existing serial devices into an Ethernet environment. ・Centralized management of data between different communication methods. ●Agent Mode Support ・Accelerates SCADA integration through data aggregation. ・Improves response performance through processing optimization. ・Enables efficient collection and transfer of large amounts of data. ●Enhanced Security Features ・Supports improved safety and stable operation of OT communications. ・Addresses data protection with a long-term operational perspective.
Price information
Please contact us.
Delivery Time
Model number/Brand name
Moxa MGate MB3170/3270/3470-G2 Series
Applications/Examples of results
● Connection of Existing Serial Devices to SCADA Connect serial devices such as Modbus devices to an Ethernet network, enabling data integration with SCADA and higher-level systems. This allows for improvements in the communication environment while utilizing existing equipment. ● Phased Migration During Equipment Updates Implement a gradual transition to an Ethernet environment while maintaining the existing system. This enables smooth updates while minimizing large-scale shutdowns and wiring changes. ● Integration Between Different Protocols Facilitate communication between different protocols, such as Modbus RTU/ASCII and Modbus TCP, ensuring interoperability between devices and systems. ● Efficiency in Data Collection and Remote Monitoring Centralize the collection of data from field devices and integrate it into monitoring systems. This contributes to real-time visualization and improved operational efficiency. ● Building a Foundation for Future Digitalization and IIoT Ensure the scalability of the network while leveraging existing assets, making it possible to serve as a foundation for future data utilization and IIoT deployment.
Related Videos
Line up（28）
| Model number | overview |
|---|---|
| MGate MB3170-G2 | 1-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×2, DB9 |
| MGate MB3170-G2-T | 1-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×2, DB9 (-40 to 75℃ wide temperature model) |
| MGate MB3170-M-SC-G2 | 1-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×1, Multi-mode SC×1, DB9 |
| MGate MB3170-M-SC-G2-T | 1-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×1, Multi-mode SC×1, DB9 (-40 to 75℃ wide temperature model) |
| MGate MB3170-M-ST-G2 | 1-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×1, multimode ST×1, DB9 |
| MGate MB3170-M-ST-G2-T | 1-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×1, Multi-mode ST×1, DB9 (-40 to 75°C wide temperature model) |
| MGate MB3170-S-SC-G2 | 1-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×1, single-mode SC×1, DB9 |
| MGate MB3170-S-SC-G2-T | 1-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×1, Single-mode SC×1, DB9 -40 to 75°C (Wide temperature model) |
| MGate MB3170-SFP-G2 | 1-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×1, SFP slot×1, DB9 |
| MGate MB3170-SFP-G2-T | 1-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×1, SFP slot×1, DB9 (-40 to 75℃ wide temperature model) |
| MGate MB3170I-G2 | 1-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×2, DB9, 2kV isolation protection |
| MGate MB3170I-G2-T | 1-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×2, DB9, 2kV isolation protection (-40 to 75°C wide temperature model) |
| MGate MB3270-G2 | 2-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×2, DB9 |
| MGate MB3270-G2-T | 2-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×2, DB9 (-40 to 75℃ wide temperature model) |
| MGate MB3270-TB-G2 | 2-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×2, 5-pin terminal block |
| MGate MB3270-TB-G2-T | 2-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×2, 5-pin terminal block (-40 to 75℃ wide temperature model) |
| MGate MB3270I-G2 | 2-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×2, DB9, 2kV isolation protection |
| MGate MB3270I-G2-T | 2-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×2, DB9, 2kV isolation protection (-40 to 75°C wide temperature model) |
| MGate MB3270I-TB-G2 | 2-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×2, 5-pin terminal block, 2kV isolation protection |
| MGate MB3270I-TB-G2-T | 2-Port Advanced Modbus Gateway, IEC62443-4-2 compliant, RJ45×2, 5-pin terminal block, 2kV isolation protection (-40 to 75°C wide temperature model) |
| MGate MB3470-G2 | 4-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×2, DB9 |
| MGate MB3470-G2-T | 4-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×2, DB9 (-40 to 75℃ wide temperature model) |
| MGate MB3470-TB-G2 | 4-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×2, 5-pin terminal block |
| MGate MB3470-TB-G2-T | 4-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×2, 5-pin terminal block (-40 to 75°C wide temperature model) |
| MGate MB3470I-G2 | 4-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×2, DB9, 2kV isolation protection |
| MGate MB3470I-G2-T | 4-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×2, DB9, 2kV isolation protection (-40 to 75°C wide temperature model) |
| MGate MB3470I-TB-G2 | 4-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×2, 5-pin terminal block, 2kV isolation protection. |
| MGate MB3470I-TB-G2-T | 4-port advanced Modbus gateway, compliant with IEC62443-4-2, RJ45×2, 5-pin terminal block, 2kV isolation protection (-40 to 75°C wide temperature model) |
