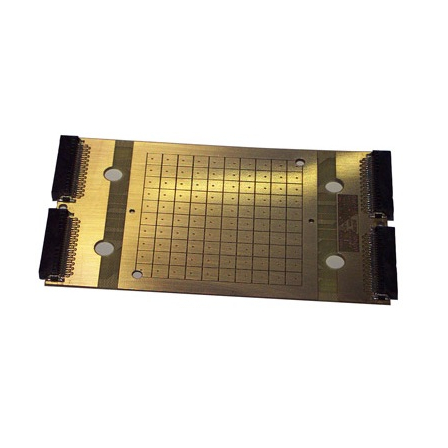

Current Density Measurement Device "Current Scan Shunt"
Simple measurement of current density distribution in a fuel cell stack.
Due to its simple internal structure, it can be used intuitively and is suitable for mass production. It is possible to connect the electric component for analysis to any computer via USB.
basic information
Measurement Range: Capable of wide-range measurements Current Measurement Time: Varies depending on the number of measurement cells and evaluation electronic components (for example, 20ms with 160 measurement cells) Measurement Position: Any location within a single cell or stack up to 300V (optional for high voltage) 【Sensor Plate】 Segment: Gold-plated Size of Measurement Cell: Varies by design Thickness: 0.4 – 3.5mm Maximum Operating Temperature: 100°C (180°C optional) 【Electric Section】 Input: 80 current measurement cells / 150 temperature measurement cells Interface: USB interface (CAN-Bus optional) Power Supply: Via USB Operating Environment: Temperature: 0–40°C 【Software】 Windows 7/8/10/11 user interface and device driver
Price range
Delivery Time
Model number/Brand name
S++ Simulation Services
Applications/Examples of results
+ Detailed analysis of the flow field is possible + Detailed analysis of materials is possible + Optimization of fuel cells is achieved + Fault diagnosis of fuel cells is performed + Long-term testing is possible + Special designs can be made upon request + Mass production is possible
