Machine component parts 'Shim Spacer' for semiconductor manufacturing equipment
Precision gap adjustment from 0.005mm that supports the positioning accuracy of semiconductor manufacturing equipment.
In the field of semiconductor manufacturing equipment, the precise positioning of tiny components directly impacts the stability of the manufacturing process and the quality of the products. In particular, even slight misalignments around critical components like motors and bearings can affect the overall performance of the equipment. To achieve high-precision positioning, meticulous gap adjustments of less than a millimeter are essential. Our "Shim Spacer" meets these stringent requirements with a wide range of thickness variations starting from 0.005mm, supporting stable operation and high-precision positioning of the equipment. 【Usage Scenarios】 - Centering of motor bases and pillow blocks - Precision adjustment of bearings - Clearance adjustments for various mechanical components - Assembly processes requiring high precision 【Benefits of Implementation】 - Reduction of equipment vibration and stable operation - Improvement in positioning accuracy - Extension of maintenance cycles - Enhancement of product yield
basic information

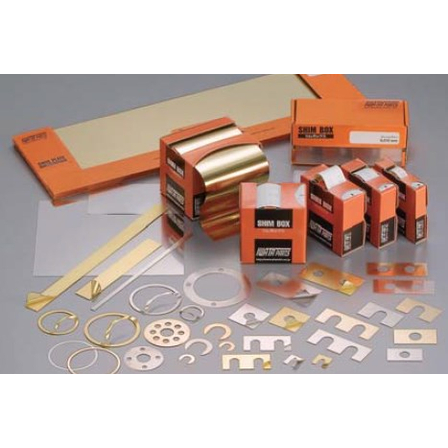

【Features】 ■ Precise thickness variations from 0.005mm, accommodating fine gap adjustments ■ Contributes to improved positioning accuracy during machine assembly, such as motor base and pillow alignment, and bearing adjustments ■ A wide variety of materials (iron, stainless steel, brass, etc.) and shapes (shim rings, base shims, shim plates, etc.) available ■ Semi-custom options enable short lead times with next-day shipping (same-day shipping available as an option) ■ A diverse lineup that meets various needs, including laminated types 【Our Strengths】 Iwata Manufacturing Co., Ltd. offers a wide range of services from the development and manufacturing of standard machine parts to custom products. We respond flexibly and accurately to demands for a variety of types and small lots. We quickly address customer needs for products that seem to be missing, from catalog items to custom solutions, bringing ideas like "it would be great to have a product like this" to life.
Price range
Delivery Time
Applications/Examples of results
【Application】 ■ Bearing inner ring, outer ring ■ Shaft end ■ Reducer, etc. ■ Motor height adjustment ■ Pillow height adjustment ■ Motor height adjustment *For more details, please refer to the PDF document or feel free to contact us.
