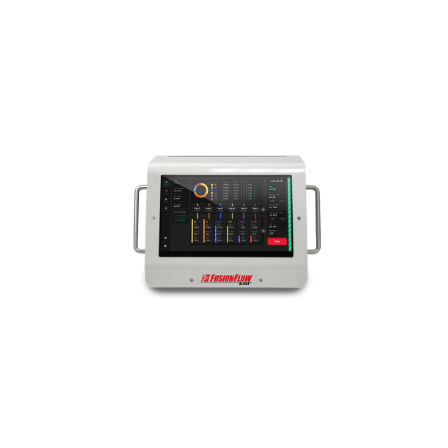

MXM-SA Gas Blending System
Open form factor 10-channel mixer for all flow applications (desktop type): for MAP packaging, etc.
◆Remote Control Interface Box ◆Available for 2 to 10 MFCs (from 0-100 SCCM to 0-12,000 SLPM units) ◆Increased range for fixed flow applications and dynamic pressure control ◆Compact tabletop controller ◎MAP Packaging (Modified Atmosphere Packaging) In the food and beverage packaging industry, accurate and reliable gas mixing is essential to ensure product quality and safety. Traditional systems are often vulnerable to changes in temperature and pressure, leading to waste and inefficiency. Allicat's mass flow-based mixing technology achieves stable mixing and smooth operation, contributing to manufacturers' quality improvement and cost reduction. ◎Benefits of FusionFlow IMX for Packaging Lines and Compliance - Accurate multi-gas mass flow measurement allows for constant precise tracking of mixed gas quantities. - High-speed control response offsets pressure fluctuations. - On-site mixing saves costs typically spent on pre-mixed bottled solutions. - All-in-one configuration enables easy gas mixing without a computer.
basic information
Gas Mixing System for Laboratory and High Flow Operations A gas mixing system that flexibly accommodates hundreds of applications. It is a highly customizable platform capable of generating mixed gases easily, from high flow operations with a single recipe to complex low flow research and development dilutions. It can mix up to 10 types of gas streams with a total flow rate of up to 120,000 SLPM, providing sufficient robustness for industrial applications. Consistent and accurate gas mixing ratios are controlled solely by the Alicat MFC. The channels are match-tuned, allowing for variable flow mixing, outlet pressure control, and rapid response to changing process conditions. ◆ The target mix has a good accuracy of ±0.6% ◆ Individual MFCs (T63) have a fast control response of up to 25ms ◆ Equipped with a library of 49 selectable gas calibrations, some of which include corrosives and refrigerants ◆ Blend pure gases or multi-component mixed gases (capable of managing up to 10 elemental gases simultaneously) ◆ Built-in system computer with integrated outlet pressure sensing module ◆ High-resolution touchscreen interface for live interactive multivariate data monitoring
Delivery Time
OTHER
Model number/Brand name
MXM-SA Benchtop Remote Control
Applications/Examples of results
Gas blending system
