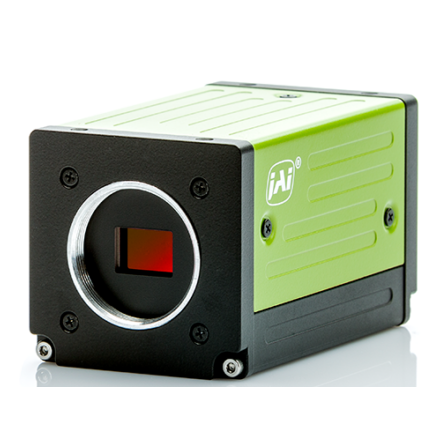

[Made in Japan] 3CMOS Prism Spectral Color Camera | Apex Series
Color reproduction that surpasses the Bayer method! A highly reliable color camera made in Japan that supports long-term operation, from FA inline inspection to life sciences.
The "Apex Series" is a next-generation industrial color camera that uses unique prism spectroscopic technology to split incident light into R/G/B, which is individually received by three Sony CMOS sensors. Since there is no need for Bayer pattern-specific color interpolation processing, it boasts extremely high color reproduction and spatial resolution without color bleeding. The interface adopts USB3 Vision, enabling low-latency and high-speed data transfer. In addition to the "standard model," which is optimal for the demanding color discrimination inspections in factory automation environments, we also offer a "microscope application model (-LS)" compatible with bio and medical software, allowing customers to choose the best model for their needs. 【Features】 ■ Overwhelming color reproduction and spatial resolution with true color (R/G/B) ■ Equipped with three Sony Pregius CMOS sensors for low noise and high sensitivity ■ Flexible color space conversion within the camera, including HSI, CIE-XYZ, sRGB, etc. ■ LS model available for integration with microscope software (such as Image-Pro) ■ Customizable specifications without IR cut filters for near-infrared (NIR) sensitivity *For more details, please download the PDF document or feel free to contact us.
basic information
■Main Specifications 【AP-1600T-USB / AP-1600T-USB-LS】 ・Resolution: 1.6MP (1456 x 1088 px) ・Frame Rate: 79 fps ・Interface: USB3 Vision ・Sensor: 3CMOS RGB (IMX273) ・Pixel Size: 3.45 x 3.45 µm 【AP-3200T-USB】 ・Resolution: 3.2MP (2064 x 1544 px) ・Frame Rate: 38 fps ・Interface: USB3 Vision ・Sensor: 3CMOS RGB (IMX265) ・Pixel Size: 3.45 x 3.45 µm
Price information
For more details, please feel free to contact us.
Delivery Time
Model number/Brand name
Apex Series / Apex Microscope Observation Camera Solution
Applications/Examples of results
■ Medical and Life Sciences Field (Recommended LS Model) - Pathological Diagnosis and Cellular Imaging: For high-precision color determination of cell and bodily fluid samples, integrated into microscopes and tissue scanners. - Ophthalmic Diagnosis: For testing applications that discern subtle differences in color shades, such as microcirculation in the retina and blood vessels. - Digital Endoscopy: As a camera system for capturing high-definition color images inside the body and during surgical fields. ■ Industrial and Factory Automation Field (Recommended Standard Model) - Electronic Component and Wafer Inspection: For detecting pixel defects and minor discolorations in PCBs (printed circuit boards), chips, and flat panels. - Printing and Packaging Inspection: For inspections requiring extremely strict color management and high precision spatial resolution, such as currency and pharmaceutical packaging. - Automotive Parts Inspection: For inspecting the paint finish of bodies and the emission color of LEDs and instruments.
Line up（3）
| Model number | overview |
|---|---|
| AP-1600T-USB | https://www.jai.com/jp/products/ap-1600t-usb/ |
| AP-3200T-USB | https://www.jai.com/jp/products/ap-3200t-usb/ |
| AP-1600T-USB-LS | https://www.jai.com/jp/products/ap-1600t-usb-ls/ |
catalog（2）
Download All Catalogs
Recommended products
Distributors
JAI is a manufacturer of industrial imaging equipment that supplies high-performance CMOS/CCD cameras across a wide range of fields, including machine vision (inspection and measurement of various industrial products), medical, science, and ITS (intelligent transportation systems). We offer a wide range of products, primarily area scan and line scan cameras, with resolutions ranging from VGA to 20 million pixels. Our unique feature is that we provide not only single-chip cameras but also innovative multi-chip cameras developed based on our proprietary prism technology.
