Made in Japan | 3CMOS Camera for Medical and Microscope Use | Apex LS Series
Top-level "dust prevention measures (FOD suppression)" and reliable Japanese manufacturing. Color reproduction that maximizes diagnostic accuracy.
The "Apex LS/LSX series" is a prism spectroscopic 3CMOS color camera specially designed for medical and microscopy applications. It captures incident light with dedicated R/G/B sensors, eliminating Bayer color artifacts. It achieves extremely high color reproduction and spatial resolution. The higher-end "LSX model" features a white housing that harmonizes with clinical settings. It meets the industry's highest standards for strict dust and foreign object (FOD) suppression, providing absolute peace of mind and clear image quality in image diagnostics where even tiny dust can be critical. **Features** - Overwhelming color reproduction with true color (R/G/B) ideal for pathology and cell observation - Meets the industry's highest standards for dust and foreign object (FOD) suppression screening (LSX) - Clean white housing that harmonizes with clinical settings (LSX) - Standard compatibility with microscopy software "Image-Pro" and "Micro-Manager" - Easy plug-and-play connectivity via USB3 Vision - Customizable option available for IR cut filterless specification with near-infrared sensitivity (-NF) *For more details, please download the PDF document or feel free to contact us.*
basic information

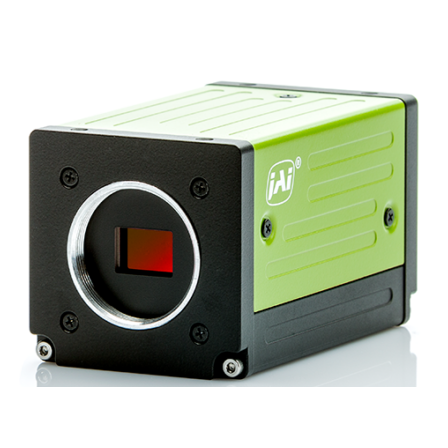

■Main Specifications 【AP-1600T-USB-LSX】 ・Resolution: 1.6MP (1456 x 1088 px) ・Frame Rate: 79 fps ・Interface: USB3 Vision ・Sensor: 3CMOS RGB (IMX273) ・Pixel Size: 3.45 x 3.45 µm 【AP-3200T-USB-LS / AP-3200T-USB-LSX】 ・Resolution: 3.2MP (2064 x 1544 px) ・Frame Rate: 38 fps ・Interface: USB3 Vision ・Sensor: 3CMOS RGB (IMX265) ・Pixel Size: 3.45 x 3.45 µm *It natively supports standard software in the microscopy field (Media Cybernetics' 'Image-Pro' and the open-source 'Micro-Manager'), allowing for smooth integration into systems.
Price information
For more details, please feel free to contact us.
Delivery Time
Model number/Brand name
Apex microscope observation camera solution
Applications/Examples of results
■ Medical and Life Sciences Field (Optimal for integration into microscopes and inspection equipment) - Pathological Diagnosis and Tissue Scanning: Integrated into microscopes and digital tissue scanners to accurately color-image minute discolorations and staining conditions of cells and tissue samples. - Cell Imaging (Cytometry): For understanding the fine structures of cells and for high-precision color determination and cell counting of bodily fluid samples (the LSX model is essential for applications where foreign substances may lead to misjudgment). - Ophthalmic Diagnostic Equipment: Integrated into examination devices that clearly distinguish subtle color differences in the fundus, such as the retina, optic nerve head, and microcirculation within blood vessels. - Surgical Microscopes and Digital Endoscopes: Used as cameras in surgical support devices to image minute blood vessels in organs and within the body in real-time and high definition, allowing for monitoring of the surgical field via a monitor.
Line up（3）
| Model number | overview |
|---|---|
| AP-1600T-USB-LSX | https://www.jai.com/jp/products/ap-1600t-usb-lsx/ |
| AP-3200T-USB-LSX | https://www.jai.com/jp/products/ap-3200t-usb-lsx/ |
| AP-3200T-USB-LS | https://www.jai.com/jp/products/ap-3200t-usb-ls/ |
