[Made in Japan] 2K to 16K High-Speed Line Camera 'Sweep Series'
Accelerate continuous web inspection! A Japanese-made line scan camera boasting a diverse lineup from 2K to 16K.

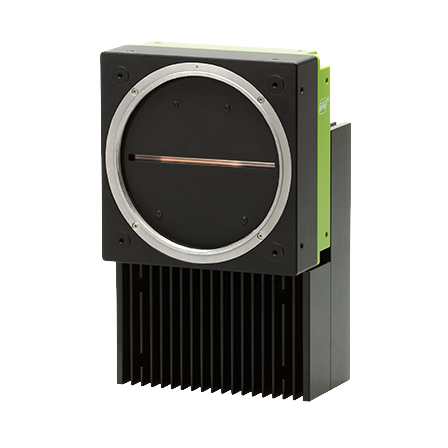

The "Sweep Series" is a high-speed line scan camera specifically designed for capturing objects moving at high speeds on conveyors and similar systems. It achieves a significant reduction in tact time while maintaining high precision in defect detection for continuous web inspection of paper and film, as well as scanning large substrates. It offers a wide range of resolutions from 2K to a maximum of 16K, featuring ultra-fast monochrome models and high-quality trilinear color models. You can choose the optimal interface from options such as 5GigE/10GigE, CXP, Camera Link, and SFP+. 【Features】 ■ A rich range of resolutions from 2K to 16K, covering the necessary field width and accuracy ■ Industry-leading high line rates to eliminate inspection bottlenecks ■ A lineup of monochrome and high-quality trilinear color models ■ A variety of interfaces including CXP, Camera Link, 5/10GigE, and SFP+ ■ Advanced features such as binning, ROI (region of interest) readout, and spatial correction built-in *For details on line rates and dimensional drawings, please download the PDF for confirmation.
basic information
■ Main Specifications * CXP = CoaXPress, MCL = Mini Camera Link 【16K】 - Monochrome: Up to 277kHz (I/F: CXP4, MCL) - Color: 100kHz (I/F: CXP4) 【8K】 - Monochrome: 100kHz (I/F: MCL) - Color: 34kHz (I/F: MCL) 【4K】 - Monochrome: Up to 200kHz (I/F: MCL, GigE, CXP) - Bilinear: 42kHz (I/F: GigE, CXP) - Color: 66kHz (I/F: 10GigE, MCL, SFP+) 【2K】 - Monochrome: 172kHz (I/F: 5GigE, CXP) - Color: 44kHz (I/F: 5GigE, CXP) * Please refer to the PDF for details. * Color = Trilinear (3 lines), Bilinear = 2 line specifications. * For details on pixel size and PoE/PoCL support, please refer to the PDF catalog.
Price information
For more details, please feel free to contact us.
Delivery Time
Model number/Brand name
Sweep Series
Applications/Examples of results
■ Continuous Web and Surface Inspection - Film, Paper, Non-woven Fabric: Detection of tiny pinholes, scratches, foreign matter, and wrinkles on the surface of materials flowing rapidly in roll form. - Metal Sheets and Foils: Inspection of dents, discoloration, and coating irregularities on the surface of aluminum and steel plates. ■ Electronic Components and Large Parts Inspection - PCB (Printed Circuit Board) and Flat Panels: High-resolution imaging of large substrates and panel surfaces that require multiple shots with area cameras, inspecting for disconnections and shorts in a single scan. - Solar Cell and Wafer Inspection: High-speed detection of micro-cracks and printing defects in electrodes. ■ Logistics, Packaging, and Printing - Quality Inspection of Printed Materials: Detection of color misalignment, missing characters, and reading of barcodes and QR codes on packages and labels printed by high-speed rotary presses. - Logistics Sorting: High-speed reading of labels and sizes on cardboard boxes flowing on conveyors, linked to an automatic sorting system.
Line up（22）
| Model number | overview |
|---|---|
| SW-16000M-CXP4A | https://www.jai.com/jp/products/sw-16000m-cxp4a/ |
| SW-16000TL-CXP4A | https://www.jai.com/jp/products/sw-16000tl-cxp4a/ |
| SW-16001M-MCL | https://www.jai.com/jp/products/sw-16001m-mcl/ |
| SW-2005M-5GE | https://www.jai.com/jp/products/sw-2005m-5ge/ |
| SW-2005M-5GE-NP | https://www.jai.com/jp/products/sw-2005m-5ge-np |
| SW-2005M-CXP | https://www.jai.com/jp/products/sw-2005m-cxp |
| SW-2005TL-5GE | https://www.jai.com/jp/products/sw-2005tl-5ge/ |
| SW-2005TL-5GE-NP | https://www.jai.com/jp/products/sw-2005tl-5ge-np |
| SW-2005TL-CXP | https://www.jai.com/jp/products/sw-2005tl-cxp/ |
| SW-4000M-PMCL | https://www.jai.com/jp/products/sw-4000m-pmcl/ |
| SW-4000TL-10GE | https://www.jai.com/jp/products/sw-4000tl-10ge/ |
| SW-4000TL-PMCL | https://www.jai.com/jp/products/sw-4000tl-pmcl/ |
| SW-4000TL-SFP | https://www.jai.com/jp/products/sw-4000tl-sfp |
| SW-4005BL-5GE | https://www.jai.com/jp/products/sw-4005bl-5ge/ |
| SW-4005BL-5GE-NP | https://www.jai.com/jp/products/sw-4005bl-5ge-np |
| SW-4005BL-CXP | https://www.jai.com/jp/products/sw-4005bl-cxp |
| SW-4005M-5GE | https://www.jai.com/jp/products/sw-4005m-5ge/ |
| SW-4005M-5GE-NP | https://www.jai.com/jp/products/sw-4005m-5ge-np/ |
| SW-4005M-CXP | https://www.jai.com/jp/products/sw-4005m-cxp/ |
| SW-8000M-PMCL | https://www.jai.com/jp/products/sw-8000m-pmcl/ |
| SW-8001M-MCL | https://www.jai.com/jp/products/sw-8001m-mcl/ |
| SW-8001TL-MCL | https://www.jai.com/jp/products/sw-8001tl-mcl/ |
Recommended products
Distributors
JAI is a manufacturer of industrial imaging equipment that supplies high-performance CMOS/CCD cameras across a wide range of fields, including machine vision (inspection and measurement of various industrial products), medical, science, and ITS (intelligent transportation systems). We offer a wide range of products, primarily area scan and line scan cameras, with resolutions ranging from VGA to 20 million pixels. Our unique feature is that we provide not only single-chip cameras but also innovative multi-chip cameras developed based on our proprietary prism technology.
