[Made in Japan] 3CMOS Line Camera | SW-4000T-MCL
3CMOS prism line camera. Supports high-speed color line inspection. Made in Japan with a reliable 3-year warranty.

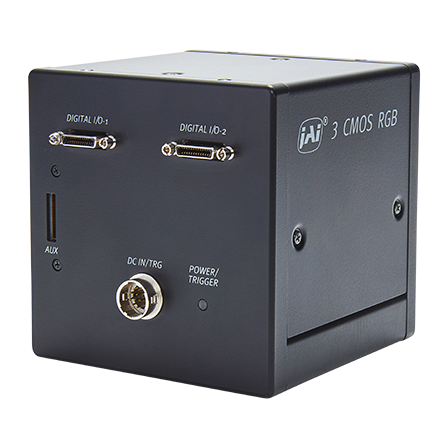

JAI's "SW-4000T-MCL" is a "Sweep+ series" 3CMOS trilinear line camera that combines three CMOS sensors and a prism. It offers overwhelmingly high color reproduction compared to Bayer-type line cameras, significantly improving the quality of high-speed color line inspections. As a "Made in Japan" camera that completes everything from development to manufacturing domestically, it boasts a significant advantage in both quality and supply stability over foreign products. It also contributes to reducing TCO during long-term operation. 【Features】 ■ 3CMOS prism structure — high-precision color line imaging without color interpolation ■ Stable color acquisition at high line rates ■ Ideal for inline inspection of color quality in printing, labels, and films ■ MCL interface adopted ■ Built-in channel delay correction function for R/G/B ■ Reliable 3-year warranty as a Japanese product — standard provision for long-term stable operation *For more details, please download the PDF document or feel free to contact us.
basic information
■ Main Specifications ・Line Resolution: 4K ・Line Rate: 66 kHz ・Interface: Mini Camera Link ・Supported Wavelength: Visible Light ・Sensor: 3CMOS RGB ・Pixel Size: 7.5 x 7.5 µm or 7.5 x 10.5 µm
Price range
Delivery Time
Model number/Brand name
Sweep+ Series
Applications/Examples of results
■ Printing and Web Inspection Field - Continuous web inspection of paper, film, etc., and surface inspection of building materials (wood, glass, etc.) - Advanced printing quality inspection of banknotes (watermarks, security features) and pharmaceutical packaging - 360-degree label appearance inspection of cylindrical containers such as cans and bottles ■ Electronics and Semiconductor Field - Detection of solder and mounting defects on printed circuit boards (PCBs) using visible and near-infrared light - High-speed scanning of tiny scratches and pixel defects on semiconductor wafers and display panels ■ Food and Recycling Sorting Field - Quality and ripeness assessment of fruits, vegetables, coffee beans, and sorting of foreign objects (such as stones) - High-precision automatic sorting of recycled materials such as colored glass, plastics, and polymers
catalog（1）
Download All Catalogs
Recommended products
Distributors
JAI is a manufacturer of industrial imaging equipment that supplies high-performance CMOS/CCD cameras across a wide range of fields, including machine vision (inspection and measurement of various industrial products), medical, science, and ITS (intelligent transportation systems). We offer a wide range of products, primarily area scan and line scan cameras, with resolutions ranging from VGA to 20 million pixels. Our unique feature is that we provide not only single-chip cameras but also innovative multi-chip cameras developed based on our proprietary prism technology.
