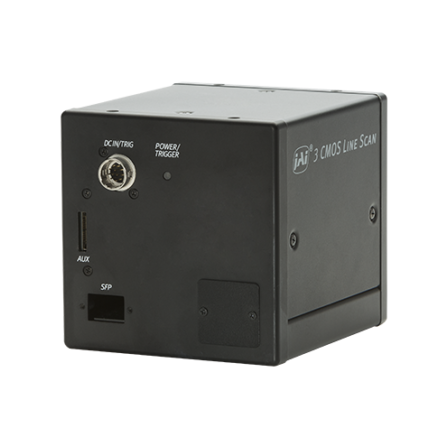

[Made in Japan] 3CMOS Line Camera | SW-8000T-SFP
3CMOS prism line camera. Supports high-speed color line inspection. Made in Japan with a reliable 3-year warranty.
JAI's "SW-8000T-SFP" is a "Sweep+ Series" 3CMOS trilinear line camera that combines three CMOS sensors and a prism. It offers overwhelmingly high color reproduction compared to Bayer-type line cameras, significantly improving the quality of high-speed color line inspections. As a "Made in Japan" camera that completes everything from development to manufacturing domestically, it boasts overwhelming advantages in both quality and supply stability over foreign products. It also contributes to TCO reduction during long-term operation. 【Features】 ■ 3CMOS prism structure — high-precision color line imaging without color interpolation ■ Stable color acquisition at high line rates ■ Ideal for inline color quality inspection of printing, labels, and films ■ SFP interface adopted ■ Built-in R/G/B channel delay correction function ■ Reliable 3-year warranty for Japanese-made products — standard provision for long-term stable operation *For more details, please download the PDF document or feel free to contact us.
basic information
■ Main Specifications ・Line Resolution: 8K ・Line Rate: 49 kHz ・Interface: SFP+ over 10 Gigabit Ethernet ・Supported Wavelength: Visible Light ・Sensor: 3CMOS RGB ・Pixel Size: 3.75 x 5.78 µm
Price range
Delivery Time
Model number/Brand name
Sweep+ Series
Applications/Examples of results
■ Printing and Web Inspection Field - Continuous web inspection of paper, film, etc., and surface inspection of building materials (wood, glass, etc.) - Advanced printing quality inspection of banknotes (watermarks, security features) and pharmaceutical packaging - 360-degree label appearance inspection of cylindrical containers such as cans and bottles ■ Electronics and Semiconductor Field - Detection of solder and mounting defects on printed circuit boards (PCBs) using visible and near-infrared light - High-speed scanning of tiny scratches and pixel defects on semiconductor wafers and display panels ■ Food and Recycling Sorting Field - Quality and ripeness assessment of fruits, vegetables, coffee beans, and sorting of foreign objects (such as stones) - High-precision automatic sorting of recycled materials such as colored glass, plastics, and polymers
catalog（1）
Download All Catalogs
Recommended products
Distributors
JAI is a manufacturer of industrial imaging equipment that supplies high-performance CMOS/CCD cameras across a wide range of fields, including machine vision (inspection and measurement of various industrial products), medical, science, and ITS (intelligent transportation systems). We offer a wide range of products, primarily area scan and line scan cameras, with resolutions ranging from VGA to 20 million pixels. Our unique feature is that we provide not only single-chip cameras but also innovative multi-chip cameras developed based on our proprietary prism technology.
