[Made in Japan] 3CMOS Line Camera | LT-400-CL
3CMOS prism line camera. Supports high-speed color line inspection. Made in Japan with a reliable 3-year warranty.

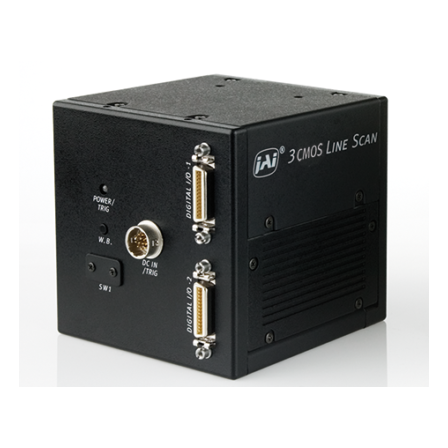

The JAI "LT-400-CL" is a "Sweep+ series" 3CMOS trilinear line camera that combines three CMOS sensors with a prism. It has overwhelmingly high color reproduction compared to Bayer-type line cameras, significantly improving the quality of high-speed color line inspection. As a "Made in Japan" camera that completes everything from development to manufacturing domestically, it boasts a tremendous advantage in both quality and supply stability over foreign products. It also contributes to reducing TCO during long-term operation. 【Features】 ■ 3CMOS prism structure — high-precision color line imaging without color interpolation ■ Stable color acquisition at high line rates ■ Ideal for inline inspection of color quality in printing, labels, and films ■ Uses CL interface ■ Built-in channel delay correction function for R/G/B ■ Reliable 3-year warranty for Japanese-made products — standard provision for long-term stable operation *For more details, please download the PDF document or feel free to contact us.
basic information
■ Main Specifications ・Line Resolution: 4K ・Line Rate: 16 kHz ・Interface: Camera Link ・Supported Wavelength: Visible Light ・Sensor: 3CMOS RGB ・Pixel Size: 7.0 x 7.0 µm
Price range
Delivery Time
Model number/Brand name
Sweep+ Series
Applications/Examples of results
■ Continuous Web and Surface Inspection Field - In-process inspection of materials flowing rapidly in rolls, such as paper, plastic films, and textile products. - High-speed surface inspection of building materials and substrates like wood, tiles, and glass. ■ Printed Material and Packaging Inspection Field - [2D Printed Material Inspection] Color inspection of magazines and pharmaceutical packages, as well as advanced banknote inspection to verify watermarks and security features. - [3D Printed Material Inspection] 360-degree non-destructive label and appearance inspection conducted while rotating cylindrical containers such as cans, bottles, and pens. ■ Electronic Devices, Semiconductor, and Display Inspection Field - Detection of trace conditions, solder quality, misalignment of mounted components, and shorts on printed circuit boards (PCBs) (Note: Simultaneous inspection with RGB and NIR is effective). - Early defect detection through appearance inspection of semiconductor wafers. - High-speed scan inspection for surface scratches and pixel defects on flat panels and LCD displays. ■ Food and Agricultural Product Inspection Field - Quality assessment and foreign matter sorting based on color for frozen foods, rice husks, coffee beans, legumes, cereals, and tea leaves. - Continuous color and quality inspection of tobacco leaves.
catalog（1）
Download All Catalogs
Recommended products
Distributors
JAI is a manufacturer of industrial imaging equipment that supplies high-performance CMOS/CCD cameras across a wide range of fields, including machine vision (inspection and measurement of various industrial products), medical, science, and ITS (intelligent transportation systems). We offer a wide range of products, primarily area scan and line scan cameras, with resolutions ranging from VGA to 20 million pixels. Our unique feature is that we provide not only single-chip cameras but also innovative multi-chip cameras developed based on our proprietary prism technology.
