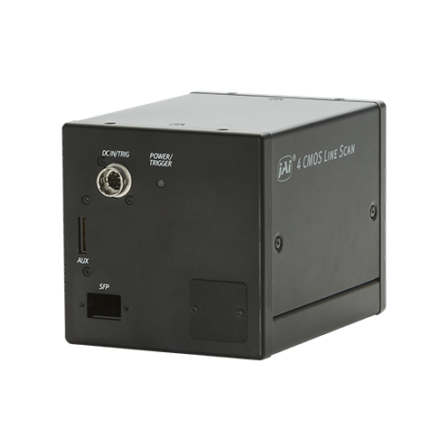

[Made in Japan] NIR Line Camera | SW-4000Q-SFP
Simultaneous acquisition of 4 bands: R/G/B + NIR. For multilayer material inspection. Made in Japan with a reliable 3-year warranty.
JAI's "SW-4000Q-SFP" is a multi-spectral line camera from the "Sweep+ series" that can simultaneously capture R/G/B and NIR in four bands. It allows for simultaneous external color inspection and near-infrared transmission inspection with a single unit, contributing to the simplification of inspection lines and cost reduction. As a "Made in Japan" camera that completes everything from development to manufacturing domestically, it boasts overwhelming superiority in both quality and supply stability compared to foreign products. Additionally, it contributes to TCO reduction during long-term operation. 【Features】 ■ Simultaneous acquisition of 4 bands (R/G/B + NIR) in a single scan ■ Precise multi-spectral imaging without positional displacement through prism spectroscopy ■ Simultaneous execution of external inspection (color) and internal quality inspection (NIR) ■ Ideal for quality control of agricultural products, food, textiles, and printed materials ■ Adoption of SFP interface ■ Reliable 3-year warranty for peace of mind — achieving stable long-term operation *For more details, please download the PDF document or feel free to contact us.
basic information
■ Main Specifications - Line Resolution: 4K - Line Rate: 72 kHz - Interface: SFP+ over 10 Gigabit Ethernet - Supported Wavelength: 4-Bands R-G-B + NIR - Sensor: 4CMOS RGB/NIR - Pixel Size: 7.5 x 7.5 µm or 7.5 x 10.5 µm
Price range
Delivery Time
Model number/Brand name
Sweep+ Series
Applications/Examples of results
■ Printing and Web Inspection Field - Continuous web inspection of paper, film, etc., and surface inspection of building materials (wood, glass, etc.) - Advanced printing quality inspection of banknotes (watermarks, security features) and pharmaceutical packaging - 360-degree label appearance inspection of cylindrical containers such as cans and bottles ■ Electronics and Semiconductor Field - Detection of solder and mounting defects on printed circuit boards (PCBs) using visible and near-infrared light - High-speed scanning of tiny scratches and pixel defects on semiconductor wafers and display panels ■ Food and Recycling Sorting Field - Quality and ripeness assessment of fruits, vegetables, coffee beans, and sorting of foreign objects (such as stones) - High-precision automatic sorting of recycled materials such as colored glass, plastics, and polymers
catalog（1）
Download All Catalogs
Recommended products
Distributors
JAI is a manufacturer of industrial imaging equipment that supplies high-performance CMOS/CCD cameras across a wide range of fields, including machine vision (inspection and measurement of various industrial products), medical, science, and ITS (intelligent transportation systems). We offer a wide range of products, primarily area scan and line scan cameras, with resolutions ranging from VGA to 20 million pixels. Our unique feature is that we provide not only single-chip cameras but also innovative multi-chip cameras developed based on our proprietary prism technology.
