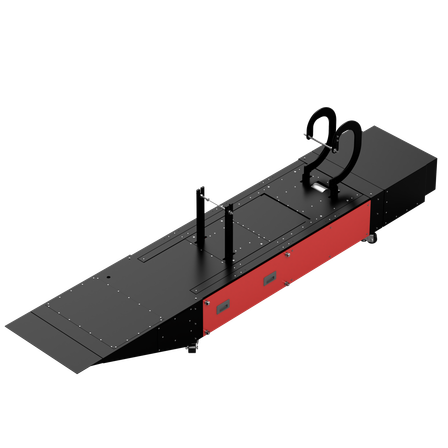

Bicycle Measuring Table for Wind Tunnels
A slim-profile table with a built-in scale to measure air resistance of a mounted bicycle.
This is a table for measuring the air resistance (drag) of bicycles. It comes with fixtures that can adjusted for the bicycle's wheelbase. Air resistance can be measured while the rider is pedaling. Rotational resistance for the rear wheel roller is offered as an option. The dedicated PC software measures both raw data for extensive testing as well as time-averaged values for quick analysis.
basic information
Dimensions*: W630×L3150×H400 mm Weight: 300kg Maximum Weight Capacity: 150kg (bicycle + rider) Wheelbase Ranger: 890-1150 mm Compatible Axle Types: Quick Release / φ12 mm Thru axle Rated Output: 1kN Sensor Resolution: 0.02% of R.O.** Compatible Wheel Size: 700C*** *Excluding bicycle fixtures (otherwise approx. 800 mm) **Based on loadcell embedded within the table ***Default specification, please contact us for changes
Price information
Prices and specifications subject to change. Please contact us for a quotation.
Price range
P6
Delivery Time
OTHER
Applications/Examples of results
Drag measurement for road bicycles, TT bicycles, bicycle frames, wheels, rider forms, helmet comparison, and gear.
