Wind tunnel testing platform for competitive wheelchairs for drag measurement.
It is possible to measure while a person is seated in a wheelchair, equipped with correction functions to achieve low-noise measurements.
This is a measurement platform for measuring the air resistance (drag) of competitive wheelchairs. It comes with adjustable fixtures that can be tailored to the wheelchair's wheelbase and wheel size. Measurements can also be taken while a person is seated or pedaling. Additionally, options for automatic roller rotation and load devices are available. The dedicated PC software includes a correction function to eliminate noise caused by the shift in the rider's center of gravity.
basic information
Model Name: Bicycle Measurement Platform (Single Axis) Load Capacity: 120kg Measurement Resolution: 0.1g Maximum Measurement Value (Flow Direction): 120kgf Weight: 250kg Wheel Rotation Motor Speed: Equivalent to 55km/h Maximum Load of Load Device: 2000W *Note 1: This is the theoretical physical value of the mounted sensor. *Note 2: This is an option.
Price information
Please feel free to contact us. We will provide a quote.
Delivery Time
Applications/Examples of results
Measurement of air resistance for competitive wheelchairs Measurement of air resistance for wheelchair tires and accessories
Detailed information
-

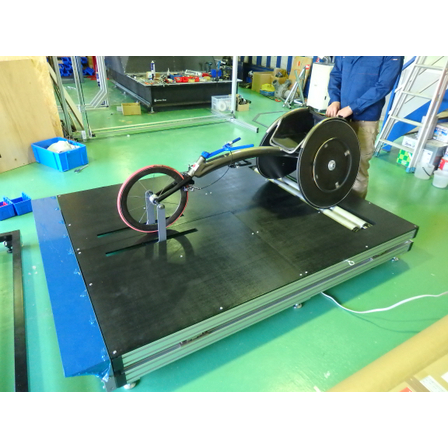

The item in the photo has specifications that include an optional rear wheel roller and load device. An optional roller can also be added to the front wheel. The front wheel fixture can be adjusted back and forth to accommodate different wheelbases.
-
Each measuring table is assembled while accurately aligning on a large flat plate.
