Wind resistance test of drones using a small wind tunnel, Aero Optim.
A low-cost and flexible wind tunnel that can adjust the airflow area by connecting 70cm square units. It also allows for functionality expansion with a variety of options!
**Aero Optim Series** ★For more details, please visit our website★ https://japanfudo.com/product/aerooptim-cell.html The Aero Optim series is a "stackable wind tunnel unit." It consolidates all functions of a wind tunnel (air supply, diffusion, uniformity, rectification) into a unit approximately 70 cm square, allowing for the creation of an air supply area as needed by stacking the units. By breaking the traditional image of wind tunnels as "large, high-cost, and high-maintenance," we realize a "compact, low-cost, and low-maintenance" solution, making it easy for those who previously could not access conventional wind tunnel experiments to adopt wind tunnels. While it is possible to use the basic unit alone, additional options can enhance flow quality, add measurement functions, and allow for individual control of fans. **[Measurement Platforms]** For bicycles, competitive wheelchairs, 6-axis measurement platforms, etc. **[Air Supply Related]** Additional rectification sections, additional contraction units, etc.
basic information
Model Name: Aero Optim Wind Speed: 1 to 15 m/s (3.6～54km/h） Wind Speed Distribution: ±8% Wind speed fluctuation: Below 1% Exit Area (W×H, mm): 630 × 630 Unit Size (L × W × H, mm): 1470 × 686 × 683 Fan: 7.5 kW IPM Motor, Axial Flow Fan Noise Level: Below 105dB (maximum) Weight: 160 kg Required Power Supply: DC Power Supply: AC400V 3-phase 50Hz Includes software for wind speed measurement It is possible to use the basic unit alone, but additional options can improve flow quality and add measurement functions. *Please view the demo video below. For more details, please contact us or download the PDF for more information.*
Price information
Please feel free to contact us. We will provide you with a quote.
Delivery Time
Model number/Brand name
Aero Optim
Applications/Examples of results
【Applications】 ■ Wind tunnel testing (Aerodynamic tests such as drag tests and visualization tests using smoke, etc.) ■ Wind resistance testing (Wind resistance performance tests for tents, umbrellas, structures, etc.) *For more details, please refer to the PDF document or feel free to contact us.
Detailed information
-
Testing using a dedicated gust-generation device is also possible.
-
The pitch angle can be freely adjusted within a range of 0° to 180°.
-
Scene from a wind resistance test of a drone using Aero Optim (equivalent to six units).
-
One DC power supply is required for each fan unit.
-

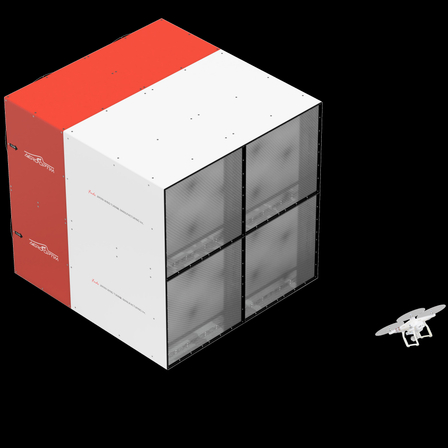

Units can be combined vertically and horizontally to achieve the required airflow area.
