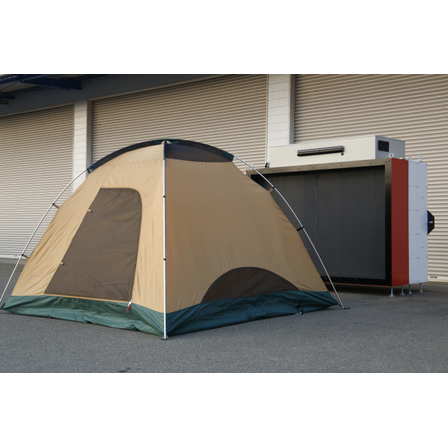

Small Wind Tunnel Aero Optim for Wind Resistance Testing of Buildings and Tents
A low-cost and flexible wind tunnel that can adjust the airflow area by connecting 70cm square units. It also allows for functional expansion with a variety of options!
**Aero Optim Series** ★For more details, please visit our website★ https://japanfudo.com/product/aerooptim-cell.html The Aero Optim series is a "stackable wind tunnel unit." It consolidates all functions of a wind tunnel (airflow, diffusion, uniformity, rectification) into a unit approximately 70 cm square, allowing for a customizable airflow area by stacking the units as needed. This breaks the traditional image of wind tunnels as "large, high-cost, and high-maintenance" systems, making it accessible for those who previously found wind tunnel experiments out of reach by achieving "compact, low-cost, and low-maintenance" solutions. The quality of the airflow is also sufficient for wind resistance testing. While it is possible to use the basic unit alone, additional options can enhance flow quality, add measurement functions, and allow for individual control of fans. **[Measurement Platforms]** For bicycles, competitive wheelchairs, 6-axis measurement platforms, etc. **[Airflow Related]** Additional rectification sections, contraction unit additions, etc.
basic information
Model Name: Aero Optim Wind Speed: 1 to 15 m/s (3.6～54km/h） Wind Speed Distribution: ±8% Wind speed fluctuation: Below 1% Exit Area (W×H, mm): 630 × 630 Unit Size (L × W × H, mm): 1470 × 686 × 683 Fan: 7.5 kW IPM Motor, Axial Flow Fan Noise Level: Below 105dB (maximum) Weight: 160 kg Required Power Supply: DC Power Supply: AC400V 3-phase 50Hz Includes software for wind speed measurement It is possible to use the basic unit alone, but additional options can improve flow quality and add measurement functions. *Please view the demo video below. For more details, please contact us or download the PDF for more information.*
Price information
Please feel free to contact us. We will provide you with a quote.
Delivery Time
Model number/Brand name
Aero Optim-Cell
Applications/Examples of results
【Applications】 ■Wind Tunnel Testing (Aerodynamic tests such as drag tests and visualization tests using smoke, etc.) ■Wind Resistance Testing (Wind resistance performance tests for tents, umbrellas, structures, etc.) *For more details, please refer to the PDF document or feel free to contact us.
