Aero Optim Series - Short-range flow-straightening blower
A wind tunnel testing device that can adjust the airflow area by connecting units measuring approximately 70cm on each side. *Demo video available.

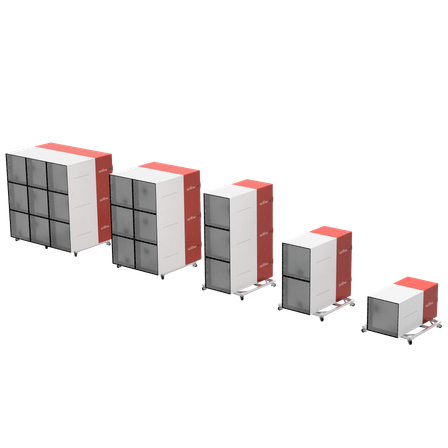

The Aero Optim series is a "stackable wind tunnel unit." All functions of the wind tunnel (blowing, diffusion, equalization, rectification) are consolidated into a unit sized 700mm x 700mm, allowing for the flexible realization of the required blowing area by stacking the units. We offer flexible solutions for wind tunnel testing, which is often perceived as expensive, at a more affordable price. 【Measurement Platforms】 For bicycles, competitive wheelchairs, 6-axis measurement platforms, etc. 【Blowing Related】 Additional rectification sections, additional contraction units, etc. *Please view the demo video below. For more details, please contact us or download the PDF for more information.
basic information
Model Name: Aero Optim Wind Speed: 1 to 15 m/s (3.6～54km/h） Wind Speed Distribution: ±8% Wind speed fluctuation: Below 1% Exit Area (W×H, mm): 630 × 630 Unit Size (L × W × H, mm): 1470 × 686 × 683 Fan: 7.5 kW IPM Motor, Axial Flow Fan Noise Level: Below 105dB (maximum) Weight: 160 kg Required Power Supply: DC Power Supply: AC400V 3-phase 50Hz Includes software for wind speed measurement It is possible to use the basic unit alone, but additional options can improve flow quality and add measurement functions. *Please view the demo video below. For more details, please contact us or download the PDF for more information.*
Price information
Please feel free to contact us. We will provide you with a quote.
Delivery Time
Model number/Brand name
Aero Optim
Applications/Examples of results
【Applications】 ■Wind tunnel testing (Aerodynamic tests such as drag tests and visualization tests using smoke, etc.) ■Wind resistance testing (Wind resistance performance tests for tents, umbrellas, structures, etc.) *For more details, please refer to the PDF document or feel free to contact us.
Detailed information
-
Scene from an aerodynamic drag measurement of a road bike using Aero Optim (equivalent to six units).
-
Scene from an aerodynamic performance test of a sports car using Aero Optim (equivalent to twelve units).
-
Scene from a wind resistance test of a drone using Aero Optim (equivalent to twelve units).
-
Scene from a wind turbine test using Aero Optim (equivalent to six units)
