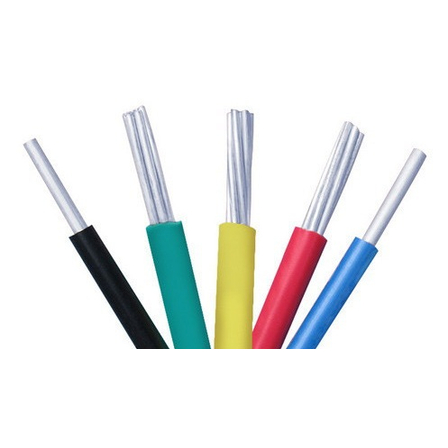

PTFE-coated wire
We will perform PTFE coating processing.
PTFE (polytetrafluoroethylene) is a type of fluoropolymer made solely from carbon and fluorine. Main Features It has a very strong carbon-fluorine bond (C-F bond), which gives it several excellent properties not found in other plastics. Heat and Cold Resistance: It has a very wide continuous use temperature range of -200°C to 260°C and remains stable even at high temperatures. Chemical Resistance: It possesses "ultimate chemical resistance," being unaffected by almost all acids, alkalis, and solvents. Non-Stick: Substances do not easily adhere to it, making it easy to prevent dirt and burning (such as in frying pan coatings). Low Friction: It has one of the lowest friction coefficients among solid materials, making it very slippery. Electrical Insulation: It has the highest level of insulation among plastics and also excels in high-frequency characteristics.
basic information
Rated temperature: -253℃ to +200℃ (the insulation material itself can withstand up to 260℃, but this is limited by the type of conductor plating) Rated voltage: 250V, 300V, 600V, etc. (to be selected according to application) Conductor material: Silver-plated soft copper wire, nickel-plated soft copper wire, tin-plated soft copper wire, etc. are common Insulation: PTFE (fluororesin) Flame retardancy: Extremely high, with self-extinguishing properties Main features Excellent heat and cold resistance: Can be used stably over a wide temperature range, from space environments to high-temperature industrial equipment. High electrical insulation: With low dielectric constant and low dielectric loss, it is suitable for communication equipment due to its excellent high-frequency characteristics. Outstanding chemical resistance: Resistant to almost all chemicals and solvents. Non-stick and low friction: The surface is slippery, making wiring work easy, and it has properties that resist dirt accumulation.
Price information
It may vary depending on the quantity, so please inquire.
Delivery Time
Model number/Brand name
EXCEL CORPORATION
Applications/Examples of results
Main applications: Internal wiring for industrial equipment such as computers, electronic exchanges, and measuring instruments. High-temperature environments: Wiring near heat sources such as constant temperature baths, floodlights, and water heaters. Special environments: Space and aerospace equipment, medical devices, and physical and chemical apparatus.
