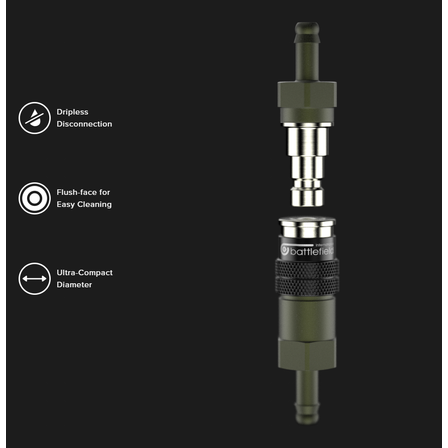

Small Quick Coupling / Quick Coupler
This is a quasi-high-spec compact/standard one-touch coupler. There are many achievements with unmanned vehicles (UUV, AUV, UAV, UGV)!
Used in the fuel lines of unmanned aerial vehicles (UAVs) and infantry fighting vehicles (IFVs) in Europe and the United States, contributing to improved maintainability and reduced downtime. Custom products, as well as existing products, can be ordered from just one piece without a minimum lot requirement. 【Product Features】 1. A compact + semi-high-spec connector that is optimal for UAVs, which has not been available before. 2. Flat face mechanism - Resistant to impact from drops. - Easy to remove causes of malfunction such as sand, dust, and debris. 3. Locking mechanism and lock confirmation mechanism - Prevents unintentional disconnection due to drops after engagement or accidental operations. 4. Proven track record in the Western military industry - Meets the MIL standard MIL-DTL-25427B, tested and verified to withstand over 1 million hours of flight and over 1,000 hours of use. #One-Touch Coupling #Quick Coupler #Quick Coupling #Fluid Connector
basic information
Product Type: Quick Disconnects Connection: Push-Pull Temperature Range: -32°C to +90°C Operating Pressure: 150psi (approximately 1MPa) Proof Pressure: 1.5X operating pressure (approximately 1.5MPa) Burst Pressure: 2.5X operating pressure (approximately 2.5MPa) Base Material: 6061 Aluminum All Materials: Hardcoat 6061 Aluminum Sleeve, Anodized 6061 Aluminum End Connect, Brass Nickel Plate Valve & Body, GFLT Valve Seal.
Price range
P2
Delivery Time
OTHER
Model number/Brand name
Battlefield Corporation
Applications/Examples of results
Unmanned Aerial Vehicle (UAV) Unmanned Ground Vehicle (UGV) Unmanned Surface Vehicle (USV) Unmanned Underwater Vehicle (UUV) / Autonomous Underwater Vehicle (AUV)
