Low silver concentration! Silver paste TK paste
Amazing! Low cost!! TK Paste is a super low silver content conductive paste that uses a unique manufacturing method with silver powder.
Silver content is only 50wt%! However, it ensures conductivity comparable to conventional pastes! Please consider this for significant cost reduction in silver paste! For grounding and shielding applications.
basic information

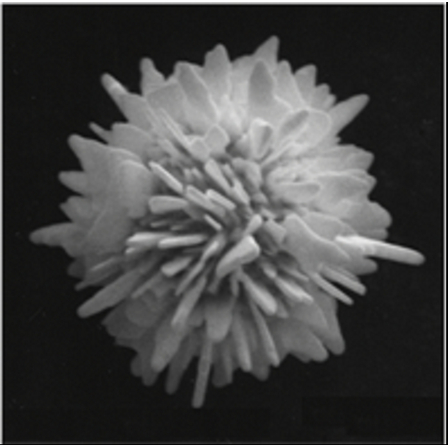

Kaken Tech has successfully developed the world's first special-shaped silver powder! Utilizing the characteristics of the chestnut-shaped silver powder, we introduce the silver paste TK Paste CR-2800, which exhibits conductivity even with a low silver content. What is the mechanism that allows conductivity despite the low silver content? The convex and concave parts of the chestnut shape fit together (like a plug and socket), allowing for more contact opportunities between the silver particles. As a result, it is possible to conduct electricity even with a small amount of silver. Why does the usage amount double compared to conventional products? Due to the reasons mentioned above, TK Paste CR-2800 has a low silver content (about 50 wt%). Other silver pastes with similar performance contain about 80 wt% silver, so when comparing the specific gravity of the pastes, the specific gravity of TK Paste CR-2800 is about half that of other silver pastes. When the specific gravity is halved, the volume doubles for the same weight, allowing TK Paste CR-2800 to be used at approximately double the amount. For more details, please download the catalog or contact the Development Support Department.
Price range
P1
Delivery Time
OTHER
Applications/Examples of results
For earth (ground) shield applications
Line up（2）
| Model number | overview |
|---|---|
| CR-2800 | No solvents! Yet a one-component epoxy-based conductive adhesive! Low silver concentration and low specific gravity!! |
| CR-3190 | Low silver concentration and low specific gravity! High viscosity and low resistance. |
