Unbelievable! Silver Paste
Amazing! Silver paste!! The TK paste has unique features that use a proprietary method of silver powder.

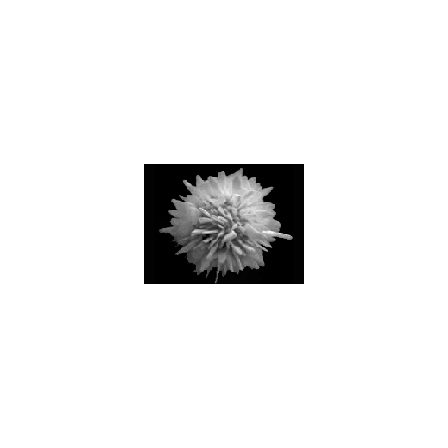

The key to high conductivity lies in the specially shaped silver powder! While conventional conductive adhesives use spherical or flake silver powder, we propose a conductive paste with unprecedented features such as low silver concentration, low cost, and low-temperature sintering, thanks to our unique burr-shaped silver powder (the world's first). 【Features】 1. TK silver powder exhibits conductivity at low silver concentrations. Even with just 50 wt% (10 vol%), it demonstrates a conductivity of 6*10^-3 Ω·cm. 2. TK paste is ideal for cost reduction! Due to its low-density silver paste, it has a larger volume than conventional products at the same weight. 3. TK silver powder allows for low-temperature sintering. It sinters at 250°C, offering a lineup of conductive pastes with high conductivity and high thermal conductivity types.
basic information
The key to high conductivity lies in the specially shaped silver powder! Conventional conductive adhesives use spherical or flake silver, but our unique burr-like silver powder offers a conductive paste with unprecedented features such as low silver concentration, low cost, and low-temperature sintering. 【Features】 1. TK silver powder exhibits conductivity at low silver concentrations. Even with just 50 wt% (10 vol%), it demonstrates a conductivity of 6*10^-3 Ω·cm. 2. TK paste is ideal for cost reduction! Due to its low-density silver paste, it has a larger volume than conventional products at the same weight. 3. TK silver powder allows for low-temperature sintering. It sinters at 250°C, and we also offer a lineup of high conductivity and high thermal conductivity silver pastes.
Price information
-
Price range
P2
Delivery Time
P4
Model number/Brand name
Conductive adhesive TK paste
Applications/Examples of results
Hole filling, surface mounting, die attach, shielding, grounding, etc.
Line up（4）
| Model number | overview |
|---|---|
| CR-2800 | Amazing silver content of 50wt%! Contributes to cost reduction. |
| CN-3160 | Room temperature drying type silver paste! No heating is required during curing. |
| CR-3520 | Excellent reliability with high thermal conductivity! |
| CM-3212 | Micro-sized silver powder that sinters at low temperatures. No pressure is required during sintering! |
