<Precision grease application with air release function> Grease metering pump *Demo unit available
Prevents grease separation and air intrusion, allowing for the application of grease and oil in precise liquid amounts. Individual application at up to 8 locations is also possible! *Proven results in major automobile factories.

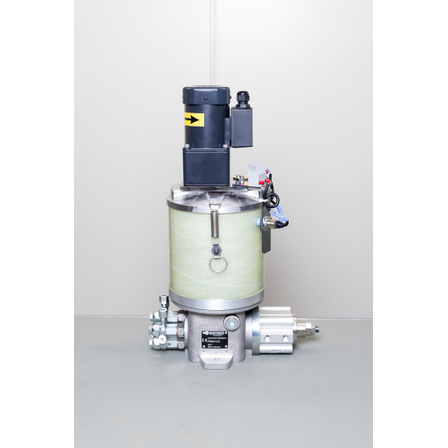

The "Grease Metering Pump" is a metering pump capable of accurately discharging a precise amount of liquid at high pressure. It allows for individual application at up to 8 locations and can be configured with an automatic grease replenishment system using a level switch. Additionally, it makes it easy to adjust the grease amount, and the stirring blades inside the tank prevent grease separation and air contamination. 《 Free rental of metering pumps, flow switches, and spray nozzles is currently available! Please try them out! 》 【Features】 ■ Ultra-high precision metering application ■ Does not stop the line during barrel changes ■ High durability (10-year warranty) ■ Simultaneous application at up to 8 locations * For more details, please download the PDF or contact us. * If you wish to request a free rental, please let us know through the inquiry form.
basic information
【Specifications】 ■Pump Name: Air-operated Multi Pump ■Pump Type: Air-driven Plunger Pump (Reciprocating Type) ■Discharge Volume/Pump Element ・PE66: 0.01 to 0.08 (cc/stroke) ・PE86: 0.04 to 0.15 (cc/stroke) ■Discharge Frequency: max. 60 (strokes/min) ■Number of Pump Elements Installed: 1 to 5 ■Power ・Pump: Air (4 kg/cm² or more) ・Agitation: Motor (AC200V or AC100V) ■Tank ・Capacity: 5 (L) ・Material: Fiberglass Resin ■Weight: Approximately 14 (kg) ■Lubricating Grease: NLGI-No.0 to No.2 *For more details, please download the PDF or contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■ It can be widely used for hand assembly lines, automatic quantitative coating devices, and quantitative coating by robots. * For more details, please download the PDF or contact us.
