Fluid flow sensor
Leave fluid flow sensors for grease and similar substances to us!
You can mainly check the application of grease, detect flow, and confirm air intrusion! It features a simple structure that makes it easy to handle while performing flow confirmation. It is used by directly installing it in the middle of piping or on bearings. The compatible fluids are "water," "oil," and "grease."
basic information
Specifications (F1 Type) Operating Pressure: min. 1 (kg/cm²) varies by fluid Pressure Resistance: = max. 100 (kg/cm²) Fluid: Oil to Grease NLGI-2 Temperature: 5 to 60℃ Oil (Minimum Detection Amount) Continuous Flow: 10 (cc/min) Dispensing/Intermittent Flow: 0.06 (cc/st) Grease (Minimum Detection Amount) Continuous Flow: 1 (cc/min) Dispensing/Intermittent Flow: 0.03 (cc/st) If the detection amount is large, it will be the MK type, so please consult with us once! Additionally, there are options with lamp connectors, so you can confirm with the equipment and also perform visual checks.
Price range
Delivery Time
Model number/Brand name

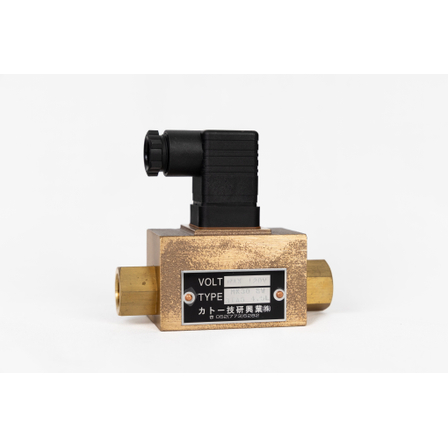

Flow switch "F1 type" "MK type"
Applications/Examples of results
Flow Switch Application Examples - Injection molding machine (toggle clamp, etc.) → Preventing seizure - Automatic coating line → Confirmation of uncoated or discharge - Lubrication confirmation of furnace fan motor by manual hand pump installation → Preventing seizure - Slide of molding machine → Preventing seizure - Handgun coating process → Confirmation of uncoated - Oil or water below 100 MPa → Lubrication confirmation - Air contamination during replacement of pails, pumps, and grease cans → Confirmation of grease discharge issues - Confirmation of water flow in cooling tower → Confirmation of circulation flow - Confirmation of discharge for chain lubrication → Prevention of uncoated
