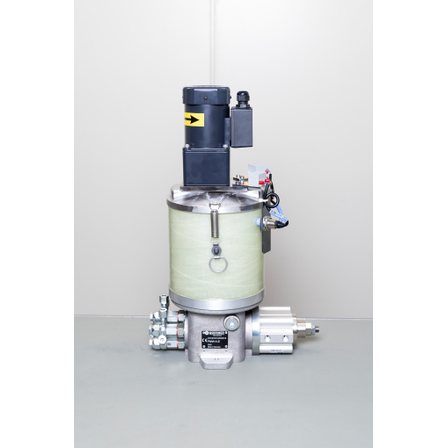

Grease Application Electric Quantitative Pump "PMW-AK Series"
Air contamination is the enemy of quality! Continuous discharge supports a zero defect rate!
- Achieves stable coating with precise quantification and high-pressure discharge - Minimum discharge amount is 0.0075cc and above - Simultaneous coating to 1 to 5 locations - Automatic supply system linked to level switch - Special stirring blades suppress air mixing and separation of grease - No need to stop the line during barrel changes, contributing to increased productivity - Easy adjustment of grease quantity to accommodate various production conditions High-durability elements with an industry-leading 10-year warranty *For more details, please refer to the PDF document or feel free to contact us.
basic information
Specifications ※〇 indicates the number of elements / □ indicates the element type Model PMW-AKCYT/○-PE□□ Pump Name Air-operated Multi Pump Pump Type Air-driven Plunger Pump (Reciprocating Type) Discharge Volume/Pump Element PE66: 0.01 to 0.08 (cc/stroke) PE86: 0.04 to 0.15 (cc/stroke) Discharge Frequency: max. 60 (strokes/min) Number of Pump Elements Installed: 1 to 5 Power Pump: Air (4kg/cm² or more) Stirring: Motor (AC200V or AC100V) Tank Capacity: 5 (L) Material: Fiberglass Resin Weight Approximately 14 (kg) Lubricating Grease NLGI-No.0 to No.2 *For more details, please refer to the PDF document or feel free to contact us.
Price information
For more details, please contact us.
Delivery Time
Applications/Examples of results
Features - This pump accurately dispenses a precise amount of grease at high pressure. - Simultaneous application at up to 5 locations is possible. - It is possible to establish an automatic grease replenishment system using a level switch. - The mixing blades inside the tank prevent grease separation and air contamination. - The line does not need to be stopped when replacing the grease drum. - Grease quantity adjustment can be easily performed. - High durability (10-year warranty). - We also offer rental of demonstration units.
catalog（3）
Download All Catalogs
Recommended products
Distributors
Our company supplies an appropriate amount of lubricants and various liquids to all types of machinery, and we handle everything from design to equipment manufacturing, installation work, and after-sales service. Currently, our sales range has expanded to include hydraulic and pneumatic systems, electrical systems, and automation equipment, resulting in a diverse range of work activities. Additionally, we are transitioning to high-viscosity fluid pumping and are actively developing equipment for precise dispensing of sealants and adhesives.
