Case Study: "Outdoor Exposure Measurement System with Data Transmission Function for Solar Cells" PDF
Case Study: "Outdoor Exposure Measurement System with Data Transmission Function for Solar Cells" PDF

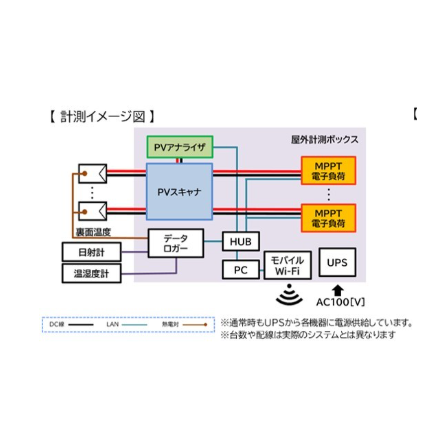

This is a system for evaluating the performance of multiple solar panels outdoors. To apply a load equivalent to that when connected to a power conditioner for each solar panel, an MPPT electronic load device is used during normal operation to operate at the maximum power point while acquiring data (voltage, current, power values). In this case, it is not necessary to synchronize the I-V curve measurement timing of each solar panel, so the measurement target is switched using a PV scanner, which is a measurement circuit switch, and measurements are taken with a PV Analyzer Gamma. A feature of this measurement system is that it automatically sends measurement data via email.
basic information
Case studies
Price range
Delivery Time
Applications/Examples of results
Case study
catalog（3）
Download All Catalogs
News about this product（1）
Recommended products
Distributors
Since the time of the Sunshine Project at the current Ministry of Economy, Trade and Industry, we have developed simulated power sources, measuring instruments, power conditioners, and more, in response to requests from organizations such as the National Institute of Advanced Industrial Science and Technology, the Central Research Institute of Electric Power Industry, and Tokyo University of Agriculture and Technology. Based on these achievements, we have commercialized our products and expanded sales to various research institutes and manufacturers, proudly positioning ourselves as a niche leader in this field. We specialize in the development of products and systems that combine hardware and software, including simulated power sources such as solar cells and storage batteries, load devices necessary for grid connection testing, and testing systems that operate these components collectively. We also have extensive experience in solar cell measurement, and our I-V curve tracer is widely used not only for the maintenance of solar power plants but also for research and development purposes at manufacturers, research institutions, and universities. We have numerous delivery records of automated measurement systems that incorporate measuring instruments and load devices. Development of power electronics equipment that combines analog and digital technologies, development of control software using DSP, and construction of PV measurement systems are among the services we offer, tailored to meet our customers' needs.
