All-ceramic spray nozzle with strong chemical resistance and abrasion resistance for slurry liquid spraying.
The ceramic "AJP/AP/JUXP/TAA" series nozzles have high heat resistance and chemical resistance, making them suitable for gas cooling and chemical spraying.

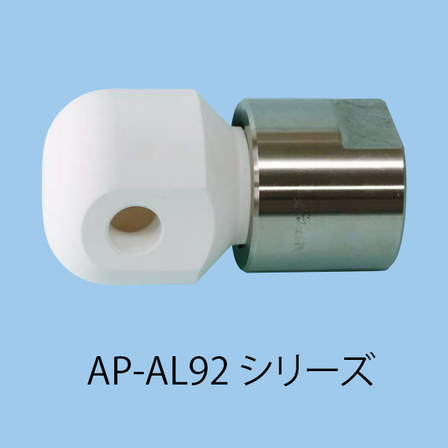

Ceramics are materials that exhibit excellent chemical resistance, wear resistance, and heat resistance compared to metals, with almost no corrosion or dissolution in chemical solutions. They also possess a very hard and wear-resistant characteristic, allowing for stable spray performance over long periods, even when spraying liquids containing sand, slurries, or abrasives, without significant changes in nozzle diameter. The "AP-AL92," "AJP-AL92," and "TAA" series are conical spray nozzles that spray at a right angle to the inlet, while the "JUXP-AL92" series sprays straight from the inlet. All of these are designed with a large foreign matter passage diameter, making them suitable for applications where clogging is a concern, in conjunction with the properties of ceramics. Among them, the "TAA" series uses SiC, which has outstanding wear resistance, and is a high-flow spray nozzle that excels in discharge devices. *We also have a wide range of other spray nozzles available. For quotes, custom orders, or any concerns regarding nozzles, please feel free to contact us. We are also available for phone and online consultations at any time.*
basic information
The spray volume, dimensions, and other specifications vary by model number. For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Model number/Brand name
AJP-AL92、AP-AL92、JUXP-AL92、TAA
Applications/Examples of results
- Chemical and Pharmaceutical Plants Spray cooling of corrosive chemical liquids Spraying of slurry catalysts and chemical mixtures - Environmental Equipment and Exhaust Gas Treatment Cooling of exhaust gases Spray of absorbent liquid in scrubbers - Mining and Ceramics Manufacturing Spray drying of ceramic and mineral slurries Humidifying spray during slurry transport after grinding - Steel and Non-Ferrous Metal Manufacturing Gas cooling spray for furnaces and exhaust ducts Circulating spray of cooling water Continuous spraying in high-temperature environments
