【MADE IN JAPAN】DI (Deionized Water) Gun
【MADE IN JAPAN】A cleaning gun suitable for maintenance of semiconductor manufacturing equipment.

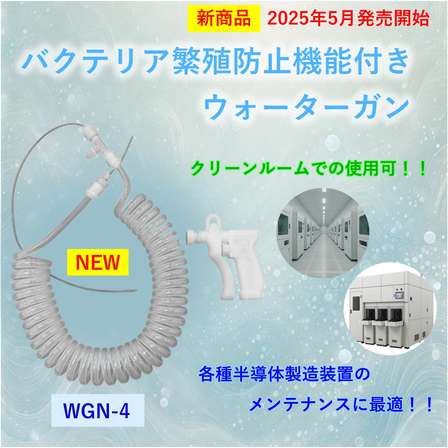

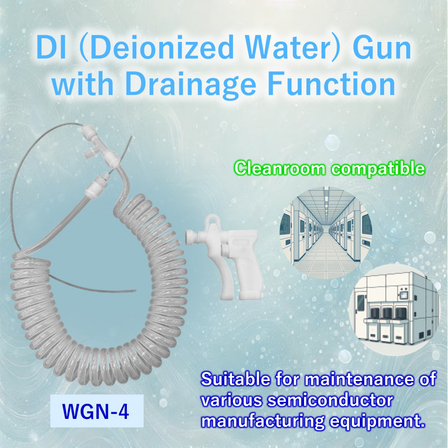

This is a pure water cleaning gun that can be used in cleanrooms, mainly for maintenance of semiconductor manufacturing equipment. ■ Stagnation-prevention feature to inhibit bacterial growth during long periods of non-use When the gun is not in use, residual water inside the gun body and hose is drained through the built-in inner tube. This helps prevent the discharge of cloudy water caused by bacterial growth. ■ Reduced operator burden through lightweight design The coiled hose is lightweight and easy to handle during operation, enabling comfortable work. It is also highly space-saving and easy to store when not in use. ■ Suitable for use in cleanrooms Oil-free (no grease used). ■ Stable supply Made of general-purpose PP resin and manufactured in Japan, ensuring stable and continuous supply.
basic information
■ Product Information Model: WGN-4 Operating Temperature Range: 5–40°C Maximum Operating Pressure: 0.4 MPa Usable Length (Reach): 2,400 mm Weight: 340 g ■ Materials Gun Body: Polypropylene (PP) O-ring: FKM Coiled Hose: Polypropylene (PP) Inner Tube: Polypropylene (PP) ■ Dimensions Coiled Hose Diameter (OD/ID): Ø10 / Ø6.5 Inner Tube Diameter (OD/ID): Ø3 / Ø1.5 Pure Water Inlet Connection: R1/4 Inner Tube Length (Tee to Tube End): 410 mm
Price range
P2
Delivery Time
OTHER
Delivery dates may vary depending on quantity and order status.
Model number/Brand name
WGN-4
Applications/Examples of results
■Semiconductor Maintenance of semiconductor manufacturing equipment Cleaning of silicon wafers, quartz tubes, glass substrates, and electronic components ■Scientific / Laboratory Maintenance of clean benches and fume hoods Cleaning of pure water and chemical tanks ■Medical Cleaning of medical instruments and medical sinks
Related Videos
Line up（1）
| Model number | overview |
|---|---|
| WGN-4 | Set product with a gun and a coil hose (with anti-retention function included) |
