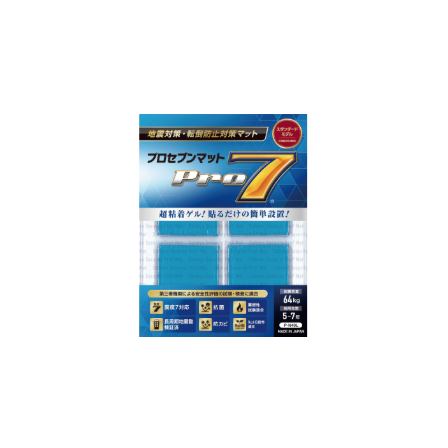

Pro-7 Earthquake Resistant Mat - Prevents Tipping and Falling
【Seismic Intensity 7 Compatible】Easy to apply earthquake and BCP measures! Prevent falls and drops of precision equipment and facilities with the high-adhesion gel "Pro-7 Seismic Mat."
The Pro-7 seismic mat is a high-performance seismic fixation gel that prevents the tipping, falling, and movement of equipment and supplies during earthquakes. It can be easily installed by simply sticking it to the bottom surface of the target object, without the need for construction, tools, or anchor bolts. The ultra-adhesive, highly elastic urethane gel flexibly absorbs vibrations and shocks, accommodating severe shaking equivalent to the Hanshin-Awaji earthquake waveform and intensity 7 levels such as 1000Gal. It is widely applicable to manufacturing lines, semiconductors, precision equipment, servers, office automation equipment, analytical and medical devices, and exhibits. Due to its self-adhesive nature, it leaves no residue when removed, and even if it gets dirty, its adhesive strength can be restored by washing with water, making it economical for repeated use. It has high safety standards, being UL94 V-2 compliant, RoHS2 directive compliant, and having passed VOC (off-gassing) analysis tests, and all products are treated for antibacterial and mold prevention. It has obtained unified qualifications from all government ministries and boasts a wealth of delivery achievements.
basic information
- Seismic resistance: Class 7 seismic intensity (passes seismic tests equivalent to 1000 Gal) - Material: Urethane elastomer (urethane gel) - Applicable temperature range: -20℃ to 75℃ - Lifespan: 5 to 7 years (biomass type: 8 to 10 years) - Environmental and safety standards: Flame retardant (compliant with UL94 V-2), compliant with RoHS2 directive, passed VOC analysis testing, antibacterial and mold-resistant specifications (compliant with JIS standards) - Installation method: Tool-free installation by simply adhering to the bottom surface (no screws or anchors required) - Removal and reuse: No damage to the installation surface, no adhesive residue left / adhesive strength can be restored by washing with water for reuse - Product lineup: - 20mm square - 30mm square - 40mm square - 50mm square - 100mm square (can be cut with scissors: approximately 1kg per 1cm²) - Long type, etc. - Load capacity guidelines: - 40kg (30mm square / 4 pieces) - 64kg (40mm square / 4 pieces) - 100kg (50mm square / 4 pieces, 100mm square / 1 piece) - Quality and manufacturing: Made in Japan, produced in ISO9001/14001 certified factory - Available documentation: Product specifications, SDS (Safety Data Sheet), Certificate of Origin (for overseas export)
Price range
Delivery Time
Model number/Brand name
Proseven Corporation
Applications/Examples of results
【Main Uses】 - Preventing tipping and shifting of factory equipment, control panels, precision measuring instruments, and machine tools - Seismic fixation of servers, PCs, printers, and other office automation equipment in data centers - Disaster prevention measures for analytical instruments, experimental equipment, and pharmaceutical shelves in universities, research institutions, and pharmaceutical companies - Fall prevention for inspection equipment, medical refrigerators, and medical supplies in healthcare facilities - Fixing showcases, valuable exhibits, and fixtures in stores and museums 【Adoption Results and Features】 We hold a unified qualification for all government ministries and have numerous implementation results in public institutions such as the National Police Agency, Self-Defense Forces, and National Tax Agency, as well as in factories of semiconductor, automotive, and food manufacturers, universities, public research institutions, and general hospitals. Our installation methods do not damage buildings and allow for easy restoration to original conditions, making them ideal for rental offices and clean rooms.
