Flat pan-shaped air outlet Air Ring
Any space can be made comfortable right where you are.

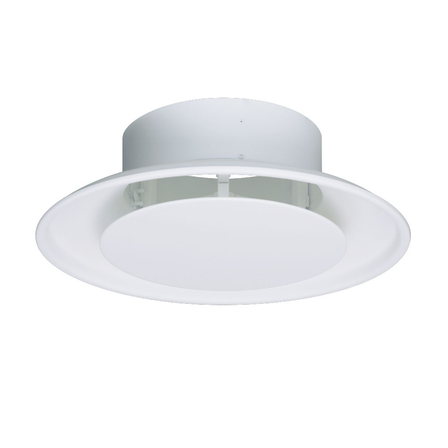

The Air Ring is a ceiling diffuser installed on the ceiling that disperses conditioned air into the room. While maintaining traditional air discharge performance, it flattens the middle pan and minimizes the rise and width of the outer cone edge, achieving a sense of unity with the ceiling. Its simple and sophisticated design allows it to blend seamlessly into various spaces such as offices, commercial facilities, and halls without compromising the spatial aesthetics. Additionally, it is available in two neck sizes, 250mm and 150mm, to accommodate a wide range of applications from large spaces to small areas.
basic information
【ARKP-150】 External dimensions: φ300×H125mm Weight: 1.1kg 【ARKP-250】 External dimensions: φ470×H145mm Weight: 1.8kg The following specifications are common. Outer cone: Flat type, aluminum material t0.8 or more Middle pan: Flat type, aluminum material t0.8 or more *Includes fall prevention wire (length 500L) Neck ring: Steel plate t0.6 Coating: Melamine resin or powder coating (no coating on the back side) Color: White (N9.5 / semi-gloss) *Can be painted in specified color Please refer to the catalog for blowout performance and other details.
Price range
Delivery Time
Model number/Brand name
Air Ring
Applications/Examples of results
◆Design that does not limit installation locations The low rise of the outer edge of the Air Ring differs from conventional outlets, achieving a sense of unity with the ceiling by minimizing the irregularities with the ceiling line. Furthermore, its minimal design allows it to blend seamlessly into any space without disrupting the theme or atmosphere. ◆Reducing construction time and costs during renovations Traditional construction methods primarily focused on changing to line shapes for aesthetic reasons, which required adjustments within the ceiling, filling holes, openings, and ductwork, leading to concerns about time and costs. However, by adopting the Air Ring during renovations, existing ceiling opening positions can be utilized, resulting in a clean space while keeping construction time and costs down.
catalog（1）
Download All Catalogs
Recommended products
Distributors
Since its establishment, our company has aimed to provide a "comfortable environmental space" for half a century, cultivating our unique technological capabilities. Our own brands, including "cooling towers," "air inlets (outlets and intakes)," and "dampers," have been developed as one of Japan's leading air conditioning equipment manufacturers, with six branches and two sales offices nationwide, involved in the air conditioning of various facilities such as government offices, public facilities, large hotels, and dome stadiums. Additionally, our high quality and performance have been recognized overseas, and our products are adopted in representative buildings in various countries, including Southeast Asia.
