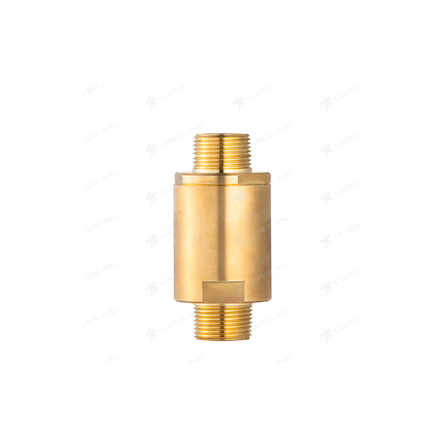

Ultra Fine Bubble Generation Nozzle 'UFB DUAL 20A' Specifications
The UFB DUAL 20A has undergone a size change from the old model to the new model. Ultra-fine bubble (nano-bubble) generation nozzle.
UFB DUAL is a product certified with the JET mark. It is a nozzle that can be directly connected to the water supply pipe, capable of creating ultra-fine bubbles from some of the air components contained in water without introducing outside air. There are no changes in water quality, purity, or pH. ■ Can be installed at the main water valve By installing just one unit at the main valve, all the water flowing beyond it will become ultra-fine bubble water. ■ No external power required It is designed to generate ultra-fine bubbles at low water pressure equivalent to tap water levels. No pumps or other equipment are needed, resulting in no operating costs. Since it connects directly to the water supply pipe, there is no need to secure a space for it. ■ High cost performance By installing at the main valve, it covers all facilities without any running costs. Compared to stationary storage methods, it achieves very high cost performance. ■ Compatible with large flow rates of 40A or more, making it suitable for large facilities. ■ Other fluids besides water can also be used. (Custom-made materials are available. Please consult us.) *For more details, please refer to the PDF document or feel free to contact us.
basic information
Material: Brass, SUS, POM / Water pressure test: 1.75MPa ■UFB DUAL 20A (Φ20) ・Overall outer diameter: 92mm ・Connection: Inlet and outlet with tapered pipe thread R3/4
Price range
P3
Delivery Time
P3
Applications/Examples of results
The range of applications is diverse, including general residences, dental clinics, dialysis hospitals, public facilities, factories, and commercial machinery. 【Uses of UFB DUAL】 ■ Purification of building water supply and drainage pipes ■ Scale suppression in kitchen equipment ■ Cleaning water for food ■ Strengthening the cleaning power in the cleaning processes of industrial products ■ Suppression of uric scale in men's restrooms ■ Purification of circulation pipes in public baths ■ Suppression of deterioration of RO membranes ■ Suppression of wear on grinding wheels and drills in metal processing, improvement of cutting and drilling efficiency, etc. *For more details, please refer to the PDF materials or feel free to contact us.
