LONGi Solar Technology(ロンジソーラーテクノロジー) Official site

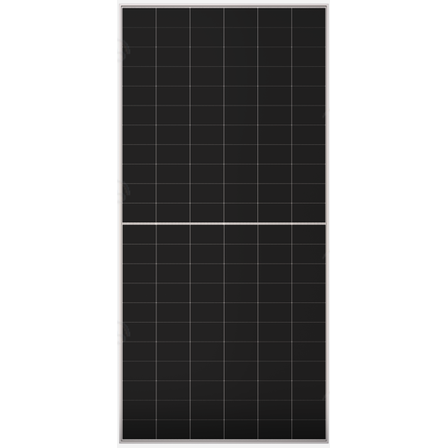

Solar Panel LR8-66HVD 640-665W High-Output Bifacial

TaiRay wafers and BC technology HPBC 2.0: high efficiency, high output, reliability, and excellent lifetime power generation; bifacial power generation; double glass solar cell modules.

In addition to the output on the front side, the durability provided by the dual-sided power generation and dual-sided glass structure on the back side, along with the new technology HPBC 2.0 of N-type back contact cells, is expected to lead to further improvements in efficiency, output, reliability, temperature characteristics, low light performance, and IAM (Incident Angle Modifier) performance, resulting in a reduction in power generation costs.

Hi-MO X10

basic information

Mechanical Characteristics Number of Cells: 132 (6×22) Junction Box: IP68, Bypass Diodes ×3 Connector: MC4 Compatible Cover Glass: Front: 2.0mm High Transmittance ARC Heat-Strengthened Glass Back: 2.0mm Heat-Strengthened Glass Frame: Anodized Aluminum Alloy Module Weight: 33.5 kg Module Dimensions: 2382×1134×30mm Packaging Specifications: 36 modules/pallet, 144 modules/20' GP container, 720 modules/40' HC container Product Warranty: 15 years Linear Power Output Warranty: 30 years Year 1: -1.0% (Guaranteed Value: 99.0%) Year 2 onwards: -0.35%/year

Price range

Delivery Time

Model number/Brand name

LR8-HYD-625~660M

Applications/Examples of results

Product specifications are subject to change without notice. Please be sure to inquire about specifications, output, and delivery dates when considering specific details.

Related Videos

Line up(1)

Model number overview
LR8-66HYD-635~670M Hi-MO 9

catalog(16)

Download All Catalogs

Data Sheet Hi-MO X10_LR_7_60_HVHL_535_560M (TaiRay G11 Wafer)

DOCUMENT

Data Sheet Hi-MO X10_LR_8_66_HVD_640_665M (TaiRay G12 Wafer)

DOCUMENT

Data Sheet Hi-MO 7_LR_8_66_HGD_595_625M (N-type HPDC TaiRay G12 Wafer)

DOCUMENT

Data Sheet LR_7_72_HVH_640_670M (Scientist Single-Sided Generation)

DOCUMENT

Data Sheet LR_7_54_HVB_475_495M (Full Black, Single-Sided Generation)

DOCUMENT

Data Sheet LR_7_54_HVH_480_500M (Single-Sided Generation)

DOCUMENT

Data Sheet LR_7_60_HVH_535_560

DOCUMENT

Data Sheet LR_7_72_HVD_640_665M (Scientist Dual-Sided Generation / Double Glass)

DOCUMENT

Data Sheet LR_7_72_HVDF_640_665M (Guardian Double-Sided Power Generation and Anti-Soiling Module)

DOCUMENT

Data Sheet LR_7_72_HVHF_640_670M (Guardian Single-Sided Generation and Anti-Soiling Module)

DOCUMENT

LONGi Company Introduction

CATALOG

LONGi Case Study Collection

TECHNICAL

LONGi Product Introduction

PRODUCT

Data Sheet LR_7_54_HVD_475_495_M (Double-sided generation, double glass)

DOCUMENT

News about this product(9)

Recommended products

Distributors

The total production volume of the four major processes in solar cell manufacturing is the largest in the world, and wafer production volume is also number one. Specializing in monocrystalline. Although they fully entered the module market in 2014, they achieved the number one global market share from 2020 to 2022, along with an AAA rating. Every year, they actively invest in research and development, continuously supplying high-performance new products to the market that excel in reliability and quality through the latest technologies.
