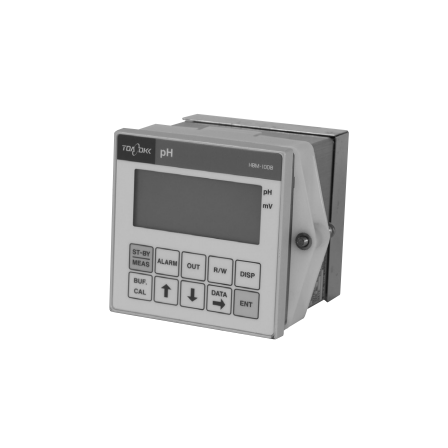

Panel-type pH/ORP controller "HBM-100B/102B"
It is equipped with two alarm (adjustment) outputs and a standard DC 4-20mA transmission output!
The "HBM-100B/102B" is a panel-mounted pH/ORP controller that conforms to the compact DIN standard of 96×96mm. The standard liquid calibration (check) features one-touch automatic stability determination, allowing for stable calibration without individual differences. Additionally, it automatically determines the quality of the electrode characteristics and displays a message. The alarm (control) output operates with upper and lower limit ON-OFF actions, along with adjustable sensitivity settings. 【Features】 ■ The standard liquid calibration (check) includes one-touch automatic stability determination, enabling stable calibration without individual differences. ■ Automatically determines the quality of the electrode characteristics and displays a message. ■ The alarm (control) output operates with upper and lower limit ON-OFF actions, along with adjustable sensitivity settings. ■ The display unit is equipped with a backlight. ■ Obtained EC directive (CE marking). *For more details, please download the PDF or feel free to contact us.
basic information
【Functions (Partial)】 ■ Cleaning signal input ■ Sample water pH value temperature compensation ■ Manual temperature compensation for glass electrode ■ pH/ORP value shift ■ Burnout ■ Automatic return to measurement mode *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Model number/Brand name
Toa DKK
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
