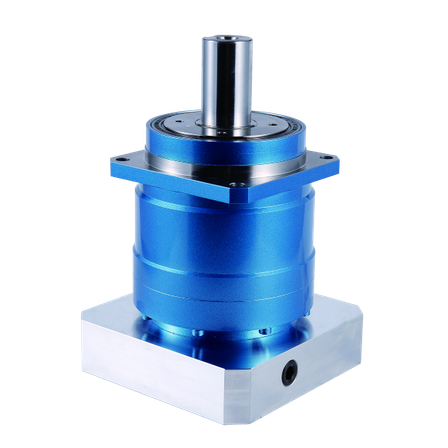

Precision planetary gearbox for servo motors
We offer a lineup of high-precision, high-efficiency, and low-cost planetary gearboxes in both coaxial and orthogonal axis types.
【Features】 - High quality at a low price - Minimal backlash, ideal for high-precision control - Low no-load torque, high efficiency
basic information
【Specifications】 ■A Series (Standard) - Coaxial: Reduction ratio 1 stage 3–10 / 2 stages 15–100, allowable average torque 7–2,400 N·m, average input rotational speed 1,000–4,000 min⁻¹, maximum 2,000–8,000 min⁻¹, backlash 1–2 stages ≦3 arcmin - Orthogonal: Reduction ratio 2 stages 3–10 / 3 stages 15–100, allowable average torque 13–305 N·m, average input rotational speed 2,000–3,000 min⁻¹, maximum 4,000–6,000 min⁻¹, backlash 2 stages ≦4 / 3 stages ≦7 arcmin ■N Series (High Rigidity) - Coaxial: Reduction ratio 1 stage 3–10 / 2 stages 12–100, allowable average torque 713–1,990 N·m, average input rotational speed 2,000–5,000 min⁻¹, maximum 4,000–10,000 min⁻¹, backlash 1–2 stages ≦3 arcmin - Orthogonal: Reduction ratio 2 stages 3–20 / 3 stages 25–200, allowable average torque 8–1,990 N·m, average input rotational speed 2,000–3,000 min⁻¹, maximum 4,000–6,000 min⁻¹, backlash 2 stages ≦4 / 3 stages ≦7 arcmin
Price range
Delivery Time
Model number/Brand name
Zhejiang Beitto Conduction Technology
Applications/Examples of results
For servo motors
Line up（4）
| Model number | overview |
|---|---|
| A Series (Standard) Coaxial Type | |
| A Series (Standard) Orthogonal Type | |
| N Series (High Rigidity) Coaxial Type | |
| N Series (High Rigidity) Orthogonal Type |
