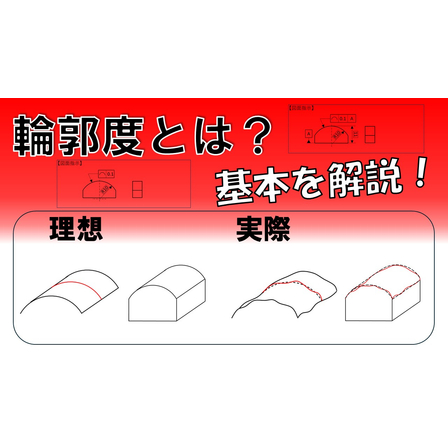

What is contouring for semiconductor manufacturing? An explanation of the basics!
I will answer the question, 'What is contouring?'
In the semiconductor manufacturing industry, there is a constant demand for improving product quality and yield. Particularly, as microfabrication technology advances, the shape accuracy of components becomes a crucial factor that affects product performance. A lack of understanding of contour accuracy can lead to errors during the design and manufacturing stages, potentially resulting in decreased yield. This video aims to contribute to quality management and yield improvement in semiconductor manufacturing by explaining the basics of "contour accuracy," a type of geometric tolerance. 【Usage Scenarios】 - Design and manufacturing of components in semiconductor manufacturing - Reading drawings in quality control departments - Problem-solving related to shape accuracy on the manufacturing floor 【Benefits of Implementation】 - Deepening understanding of contour accuracy to reduce mistakes during the design and manufacturing stages - Early detection of issues related to shape accuracy to improve yield - Enhancing product quality and increasing customer satisfaction
basic information
【Features】 - Understand the definition of contour tolerance - Recognize situations where contour tolerance is specified - Understand how contour tolerance is used on drawings - Be aware of precautions when using contour tolerance 【Our Strengths】 Matsui Manufacturing Co., Ltd. offers a consistent production system from hot forging to machining, pipe bending, brazing, and unit assembly, primarily focusing on non-ferrous metals such as copper, brass, and aluminum. We propose suitable QCD (Quality, Cost, Delivery) to our customers from our production bases located in four locations domestically and internationally (Osaka, Tottori, Himeji, and China). We also provide educational videos related to the manufacturing industry on YouTube to support the acquisition of technical knowledge.
Price range
Delivery Time
Applications/Examples of results
Gas appliances, air conditioning equipment, medical devices, semiconductor-related items, etc.
Related Videos
catalog（2）
Download All Catalogs
Recommended products
Distributors
Matsui Manufacturing Co., Ltd. focuses on non-ferrous metals such as copper, brass, and aluminum, offering a consistent production system from hot forging to machining, pipe bending, brazing, and unit assembly. We propose suitable QCD (Quality, Cost, Delivery) to our customers from our four production bases located in Japan and abroad (Osaka, Tottori, Himeji, and China). Since our establishment in 1948 as a manufacturer of gas appliance parts, we have developed and manufactured various control devices related to gas appliances, petroleum, water, and air conditioning, marking half a century of history with the motto of "Customer First." We will continue to acquire advanced technologies, promote flexible thinking that breaks away from conventional concepts, and not only respond to user needs but also proactively propose solutions that anticipate the needs of end users. We look forward to your continued guidance and support.
