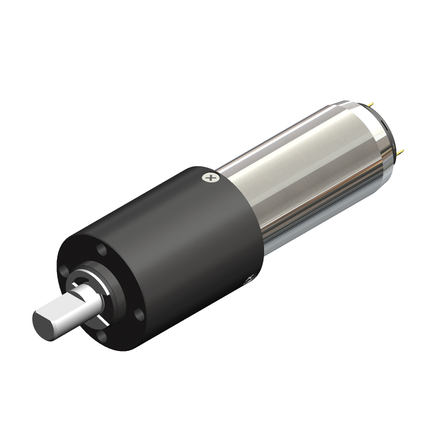

φ22 geared motor (SCR17-35××/IG-22V)
The planetary gear head adopts "IG-22V"! Products with starting currents of 1040mA, 1310mA, and 2020mA are available.
We would like to introduce the 'φ22 geared motor' that uses the coreless motor "SCR17-35××" handled by Citizen Micro Co., Ltd. The reduction ratio ranges from 4 to 509, and the planetary gear head adopts "IG-22V". Our company offers approximately 3,000 types of geared motors as standard products, using either planetary gear heads (outer diameter φ8 to 24, □43) or spur gear heads (outer diameter φ12 to 42 or special shapes). 【Lineup (partial)】 ■ IG-22VM-SRU3551B-06 DC6V ■ IG-22VM-SRU3552B-06 DC6V ■ IG-22VM-SRU3551B-12 DC12V ■ IG-22VM-SRU3553B-12 DC12V ■ IG-22VM-SRU3554B-12 DC12V *For more details, please refer to the PDF document or feel free to contact us.
basic information
【IG-22VM-SRU3551B-06 DC6V Specifications (Excerpt)】 ■ Reduction Ratio: 4 (1/i) ■ No-load Rotational Speed: 1160 min-1 ■ Rated Rotational Speed: 867 min-1 ■ Rated Torque: 9.32 mNm / 0.10 kg·cm / 1.32 oz·in ■ Starting Torque: 36.9 mNm ■ Length (L): 52.9 mm ■ Rotation Direction: CW *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
