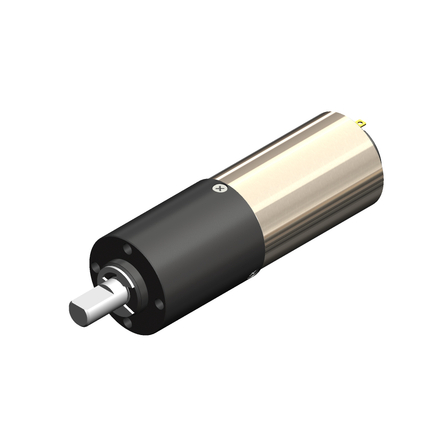

φ22 geared motor (SC21-37××/IG-22V)
The product lineup includes starting currents of 2060mA, as well as 2300mA, 1550mA, and 379mA!
We would like to introduce the 'φ22 geared motor' that uses the coreless motor "SC21-37××" handled by Citizen Micro Co., Ltd. A geared motor is a general term for a combination of a motor and a reduction gear. It adopts the "IG-22V" planetary gear head, with a reduction ratio ranging from 4 to 509. By combining a geared head that meets your specifications (our standard products have a gear ratio of 1/4 to 1/3000), we achieve the desired rotational speed and torque. 【Lineup (partial)】 ■ IG-22VM-SRY3702B-06 DC6V ■ IG-22VM-SRY3703B-12 DC12V ■ IG-22VM-SRY3705B-12 DC12V ■ IG-22VM-SRY3710B-24 DC24V ■ IG-22VM-SRY3714B-24 DC24V *For more details, please refer to the PDF document or feel free to contact us.
basic information
【IG-22VM-SRY3702B-06 DC6V Specifications (Excerpt)】 ■ Reduction Ratio: 4 (1/i) ■ No-load Rotational Speed: 1630 min-1 ■ Rated Rotational Speed: 1310 min-1 ■ Rated Torque: 9.81 mNm / 0.10 kg·cm / 1.39 oz·in ■ Starting Torque: 50.0 mNm ■ Length (L): 53.5 mm ■ Rotation Direction: CW *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
