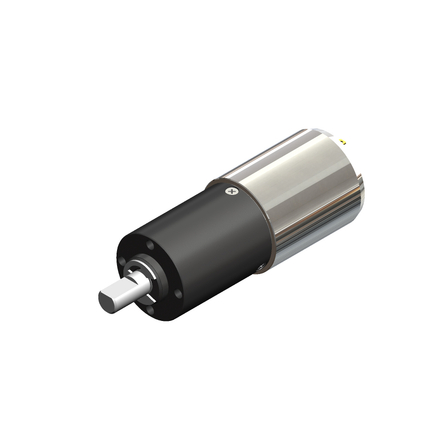

φ24 geared motor (SC24-32××/IG-22V)
The lineup includes products with starting currents of 4930mA, 3940mA, 3150mA, and 2620mA!
We would like to introduce the 'φ24 geared motor' that uses the coreless motor "SC24-32××" handled by Citizen Micro Co., Ltd. The planetary gear head adopts "IG-22V" and offers products with a reduction ratio ranging from 4 to 509. Our company achieves the desired rotational speed and torque by combining geared motors with gear heads tailored to your specifications (our standard products have gear ratios from 1/4 to 1/3000). 【Product Lineup】 ■ IG-22VM-SRN3201B-09 DC9V ■ IG-22VM-SRN3202B-12 DC12V ■ IG-22VM-SRN3203B-18 DC18V ■ IG-22VM-SRN3204B-24 DC24V *For more details, please refer to the PDF document or feel free to contact us.
basic information
【IG-22VM-SRN3201B-09 DC9V Specifications (Excerpt)】 ■ Reduction Ratio: 4 (1/i) ■ No-load Rotational Speed: 2380 min-1 ■ Rated Rotational Speed: 2120 min-1 ■ Rated Torque: 14.7 mNm / 0.15 kg·cm / 2.08 oz·in ■ Starting Torque: 135 mNm ■ Length (L): 48.7 mm ■ Rotation Direction: CW *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
