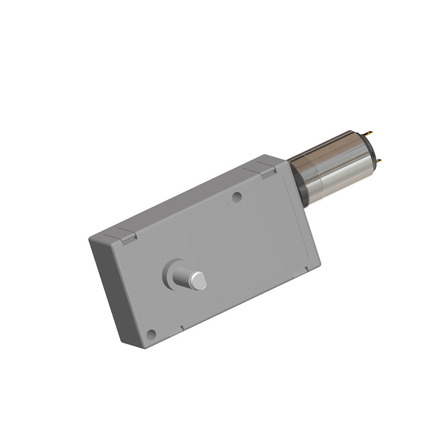

36×66 geared motor (SCR16-25××/RTJ-100)
Introducing a geared motor with a counterclockwise rotating RTJ-100 spur gear head!
We would like to introduce the '36×66 geared motor' that uses the coreless motor "SCR16-25××" handled by Citizen Micro Co., Ltd. Our lineup includes the "RTJ-100-SR2503A-06 DC6V" with a starting current of 319mA, as well as the "RTJ-100-SR2506A-06 DC6V" at 612mA and the "RTJ-100-SR2501A-06 DC6V" at 722mA. We offer approximately 3,000 standard models of geared motors using planetary gear heads (outer diameters φ8 to 24, □43) or spur gear heads (outer diameters φ12 to 42 or special shapes). 【Partial Lineup】 ■RTJ-100-SR2503A-06 DC6V ■RTJ-100-SR2506A-06 DC6V ■RTJ-100-SR2501A-06 DC6V ■RTJ-100-SR2504A-12 DC12V ■RTJ-100-SR2502A-12 DC12V *For more details, please refer to the PDF document or feel free to contact us.
basic information
【RTJ-100-SR2503A-06 DC6V Specifications (Excerpt)】 ■ Reduction Ratio: 151 (1/i) ■ No-load Rotational Speed: 38.7 min-1 ■ Rated Rotational Speed: 32.9 min-1 ■ Rated Torque: 39.2 mNm / 0.40 kg·cm / 5.56 oz·in ■ Starting Torque: 262 mNm ■ Rotation Direction: CCW *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
