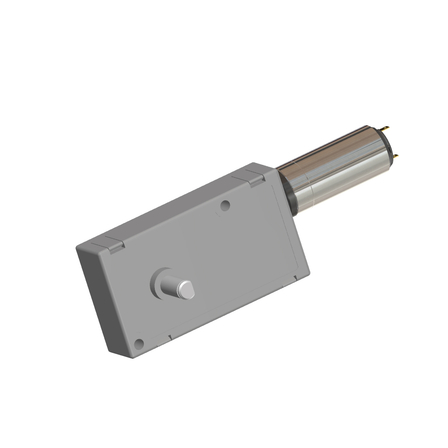

36×66 geared motor (SCR16-35××/RTJ-100)
The reduction ratio is 151 to 908! We offer products with starting currents of 534mA, 862mA, and 1260mA, among others.
We would like to introduce the '36×66 geared motor' that uses the coreless motor "SCR16-35××" handled by Citizen Micro Co., Ltd. The spur gear head adopts "RTJ-100," and we offer products with a counterclockwise (CCW) rotation direction. By combining geared heads according to your specifications (with our standard gear ratios ranging from 1/4 to 1/3000), we achieve the desired rotational speed and torque. 【Product Lineup (Partial)】 ■RTJ-100-SR3505A-06 DC6V ■RTJ-100-SR3501A-06 DC6V ■RTJ-100-SR3502A-12 DC12V ■RTJ-100-SR3506A-12 DC12V ■RTJ-100-SR3504A-24 DC24V *For more details, please refer to the PDF document or feel free to contact us.
basic information
【RTJ-100-SR3505A-06 DC6V Specifications (Excerpt)】 ■ Reduction Ratio: 151 (1/i) ■ No-load Rotational Speed: 32.0 min-1 ■ Rated Rotational Speed: 27.6 min-1 ■ Rated Torque: 73.5 mNm / 0.75 kg·cm / 10.4 oz·in ■ Starting Torque: 535 mNm ■ Rotation Direction: CCW *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
