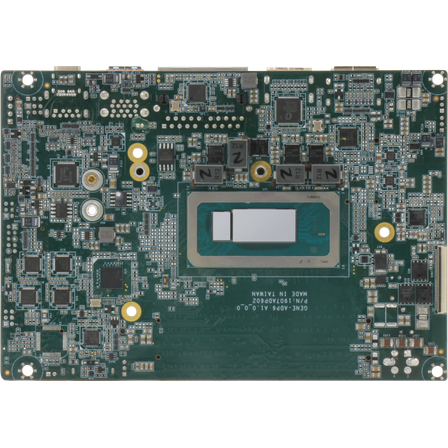

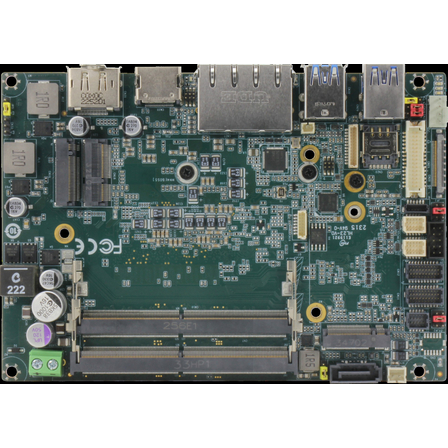

GENE 3.5" Board GENE-RAP6
13th generation Core × condensed high performance into a small board.
GENE-RAP6 is a high-performance single board computer in a 3.5" (subcompact) size provided by AAEON. It is equipped with a 13th generation Intel Core processor (Raptor Lake), offering the latest computational power and high expandability. ● High Performance & Versatile: Achieves high computing power and energy efficiency with the 13th generation Core processor (PE/UE series). ● 4K/8K Display Support: Supports 8K resolution with HDMI 2.1 and DP 1.4, allowing for multiple display outputs. ● High-Speed Communication: Ensures the necessary communication bandwidth for industrial applications with 2.5GbE and 1GbE LAN ports. ● Flexible Storage/Expandability: Features NVMe-compatible M.2, slots for wireless modules (5G/Wi-Fi), and B-Key. ● Industrial Connectivity: Strong connectivity with embedded devices through four RS-232/422/485 serial ports. ● Power Resilience: Supports a wide voltage input (9-36V), accommodating various power environments such as industrial and automotive. ● Memory Scale: Supports up to DDR5 64GB, enabling high-load processing. ● Secure: Enhanced security with TPM 2.0.
basic information
●146mm x 101.7mm ●Intel(R) 13th Generation Raptor Lake Core i3-1320PE/ i5-1335UE/ i5-1340PE/ i7-1360P/ i7-1370PE/ i7-1370PRE/ Processor U300E equipped ●DDR5 4800 MHz Dual Channel SODIMM×2 slots (maximum 64GB) (sold separately) ●LVDS×1, eDP x1, DP×1, HDMI×1 ●2.5GbE×1, GbE×1, SATA 6Gb/s×1, GPIO×8-bit ●USB 3.2 Gen 2×3, USB 2.0×4, USB Type C×1, RS-232/422/485×4 ●M.2 2280 M-Key×1 (PCIe 4.0 [x4] x 1), M.2 2230 E-Key×1, M.2 3052/3042/2242 B-Key×1 ●Operating temperature 0°C ~ 60°C/ -40°C ~ 85°C (only for GENE-RAP6W2-0006)
Price range
Delivery Time
Model number/Brand name
GENE-RAP6 AAEON
Applications/Examples of results
Industrial HMI / Control Terminals Gateway / Edge AI Processing Digital Signage Smart Retail Terminals Embedded Devices such as Medical and Inspection Equipment
