GENE 3.5" Board GENE-ARH6
Powerful computation and control I/O condensed into a small form factor.

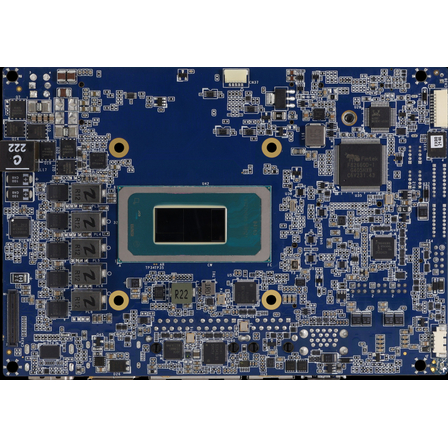

GENE-ARH6 is a 3.5-inch (subcompact) single-board computer (SBC) provided by AAEON, equipped with the Intel Core Ultra "Arrow Lake" series (200H/200U). It features high AI inference capabilities and is designed for advanced applications in industrial use and edge computing.
basic information
●146mm x 101.7mm ●Equipped with Intel Core Ultra 5 225H/7 255H (Arrow Lake) ●DDR5 6400MHz dual-channel SODIMM x 2 (up to 96GB) (sold separately) ●LVDS x 1, eDP x 1, HDMI x 1 ●LAN x 3, SATA 6Gb/s x 1, 8-bit GPIO ●USB 3.2 Gen2 x 2, USB 2.0 x 4 ●M.2 2280 M-key x 1 (PCIe 4.0 [x4]/SATA), M.2 3052 B-key x 1, M.2 2230 E-key x 1 ●DC 9–36V input compatible ●Operating temperature 0°C ~ 60°C
Price range
Delivery Time
Model number/Brand name
GENE-ARH6 AAEON
Applications/Examples of results
Industrial HMI / Control Terminals Gateway / Edge AI Processing Digital Signage Smart Retail Terminals Embedded Devices such as Medical and Inspection Equipment
