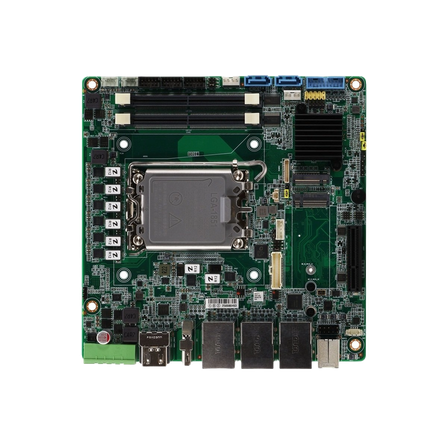

Industrial Motherboard Mini-ITX MIX-H810WV1
AI and edge control realized with a compact motherboard.
The MIX-H810WV1 is an industrial Mini-ITX motherboard from AAEON, compatible with the Intel Core Ultra 200S series (LGA1851). It features a compact design while delivering high performance, making it suitable for embedded applications and edge computing.
basic information
●170mm x 170mm ●Compatible with Intel Core Ultra 200S series ●DDR5 SODIMM x 2 (up to 96GB) (sold separately) ●PCIe x4 x 1, M.2 3042/52 B-key x 1 ●USB2.0 x 4, USB3.2 Gen2 x 2 (rear I/O), USB3.2 Gen1 x 1, USB2.0 x 1 (pin header) ●SATA 6Gb/s x 2 ●HDMI 2.0 x 2, DP 1.4 x 1 ●DC input 19V ~ 24V ●RJ-45 x 2 (2.5GbE x 2) ●Operating temperature 0°C ~ 60°C
Price range
Delivery Time
Model number/Brand name
MIX-H810WV1 (preliminary) AAEON
Applications/Examples of results
Industrial HMI / Control Terminals Gateway / Edge AI Processing Digital Signage Smart Retail Terminals Embedded Devices such as Medical and Inspection Equipment
catalog（1）
Download All Catalogs
