High heat-resistant high insulation electrostatic coating
Achieving excellent edge cover performance and high voltage resistance characteristics without pinholes! A technology that contributes to improved heat resistance and cost reduction.
"High Heat Resistance High Insulation Electrodeposition Coating" is an electrodeposition coating that achieves improved heat resistance and cost reduction. Using imide-amide-epoxy modified resin, it offers excellent edge coverage and is free of pinholes. It boasts high hardness, heat resistance, and chemical resistance, and as a cationic paint, it can be applied to various materials with arbitrary thickness control. [Features] - Utilizes imide-amide-epoxy modified resin to enhance heat resistance and reduce costs - Provides excellent edge coverage and is pinhole-free, achieving high voltage resistance characteristics - Exhibits high hardness, heat resistance, and chemical resistance - Cationic paint that is compatible with various materials *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications】 ■ Glass transition temperature: 130°C ■ Volume resistivity: 10^16Ωcm ■ Dielectric breakdown voltage: 1000V/10μm ■ 5wt weight loss temperature: 180°C ■ Pencil hardness: 5H ■ Acid resistance (5% sulfuric acid): over 48 hours (50°C) ■ Alkaline resistance (5% NaOH): over 48 hours (50°C) *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results

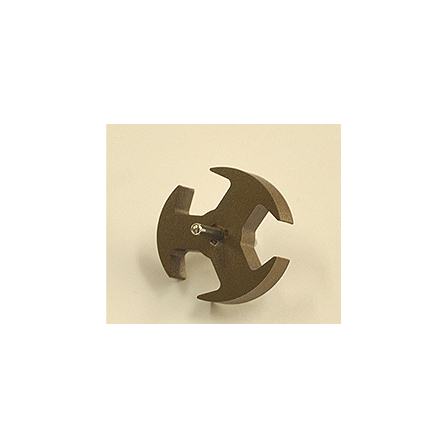

[Examples of Achievements] ■Examples of products coated with high heat resistance and high insulation electrostatic painting *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Recommended products
Distributors
MK Science Co., Ltd. has been engaged in industrial waste collection and transportation services, as well as contract processing services for high-performance coating treatments, in response to environmental and recycling demands since its establishment. In particular, among our high-performance coating technologies, our excellent processing techniques for thin films and high-insulation uniform edge covers are widely used in the field of compact and lightweight ultra-small motors. Please feel free to contact us if you have any inquiries.
