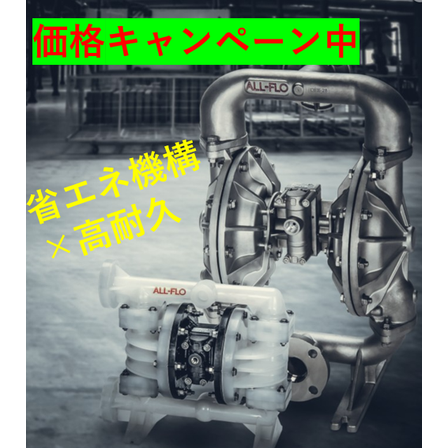

Low-cost product | Air-operated double diaphragm pump 'ALL-FLO'
For chemicals, food, and pharmaceuticals! Contributes to the longevity and energy efficiency of pumps with a mechanism that prevents intermediate stops. Suitable for high-viscosity, corrosive liquids, slurries, etc., and also excellent for explosion-proof areas.
The air-driven diaphragm pumps from ALL-FLO in the United States are capable of transporting a variety of fluids, including chemical solutions, slurries, and high-viscosity liquids. With a completely oil-free design that requires no lubrication, they are well-suited for clean environments such as food, pharmaceuticals, and semiconductors. The pump body is available in a wide range of materials, including PP, PVDF, PTFE, aluminum, and SUS316, making it suitable for corrosive fluids as well as abrasive slurries. The simple structure allows for easy maintenance, and short delivery times are possible due to domestic stock. 【Main Features】 - Completely air-driven system → No electrical work is required due to air drive. Can be used in explosion-proof areas. - Fully self-sufficient → Can lift dry, no priming needed. - Capable of transporting solids/slurry liquids → Can pump solids with a maximum particle size of 11 mm (varies by pump size). Suitable for a wide range of applications from low to high viscosity fluids. - Unique air switching design → No intermediate stops, achieving longer pump life and energy savings. Pump bodies and parts are stocked domestically. There are also many diaphragm pumps available for powder specifications and special applications. *For more details, please download the PDF or feel free to contact us.
basic information
Type: Air-operated diaphragm pump Connection diameter: 1/4 inch to 3 inches Maximum flow rate: Up to approximately 850 L/min (depending on model) Operating pressure: 0.2 to 0.7 MPa (2 to 7 bar) Operating temperature range: Up to 100°C (depending on material) Self-priming capability: Up to approximately 6.7 m (dry) Power source: Compressed air Wetted materials: PP, PVDF, PTFE, SUS316, aluminum Compatible liquids: Chemicals, acids and alkalis, high-viscosity liquids, slurries, food, wastewater, solvents, etc. Explosion-proof compatibility: Yes (proven track record in explosion-proof areas)
Price range
Delivery Time
Applications/Examples of results
【Examples of Use】 - Transport of chemical agents, acids, and alkalis - Liquids mixed with slurries or abrasives (such as wastewater treatment) - High-viscosity materials in food, cosmetics, and pharmaceuticals - Semiconductor chemicals, high-purity chemicals - Various industrial waters, solvents, adhesives, etc.
